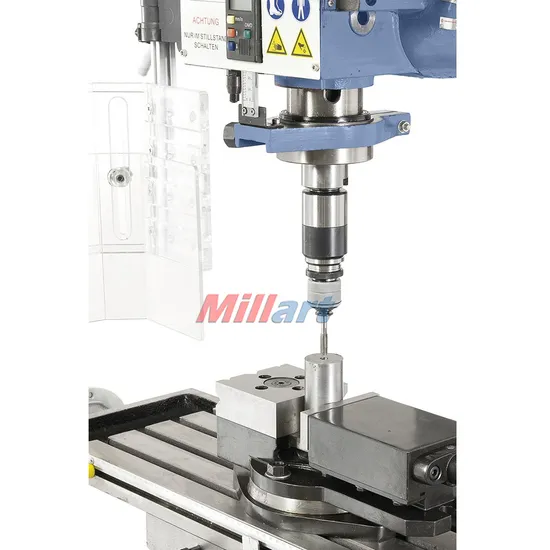

Metal Swivel Head Vertical Drilling and Milling Machine Zx7045b Zx7045b1 Universal Milling Machine

Product Description

Product Description
Technical parameter :
Feature:
Gear hardened, large driven torque
Wide spindle speed range
B1 type 2 speed motor
Specification:

Specifications	ZX7045B	ZX7045B1
Max. Drilling capacity (mm)	cast iron:45/ Steel:32	cast iron:45/ Steel:32
Max. face mill capacity (mm)	80	80
Diameter of vertical milling (mm)	22	28
Diameter of column(mm)	115	115
Spindle travel (mm)	110	110
Distance spindle axis to column generating line (mm)	260	260
Max. Distance spindle nose to table(mm)	475	475
Spindle taper	MT4 orR8	MT4 orR8
Spindle speeds range (r/min)	50~1250	50~2500
Spindle speeds series	6	12
Spindle feeds(mm/r)	0.12 0.18 0.25	0.12 0.18 0.25
Dimension of worktable surface (mm)	820x240	820x240
Table travel (mm)	540x170	540x170
Dimension of base(mm)	605x558	605x558
Coolant motor(w)	40	40
Net/Gross weight(kg)	360/405	360/405
Overall height (mm)	1100	1100
Main motor (W)	Single-phase:1100 Three-phase: 1500	Single-phase:1100 Three-phase: 1500

Standard accessories:
Drill chuck 16mm.
Cutter 80mm
Taper sleeve
Arbor
Wrench
Draw bar
Optional accessories:
Milling chuck
Safety guard
Angle vice
Stand
Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
