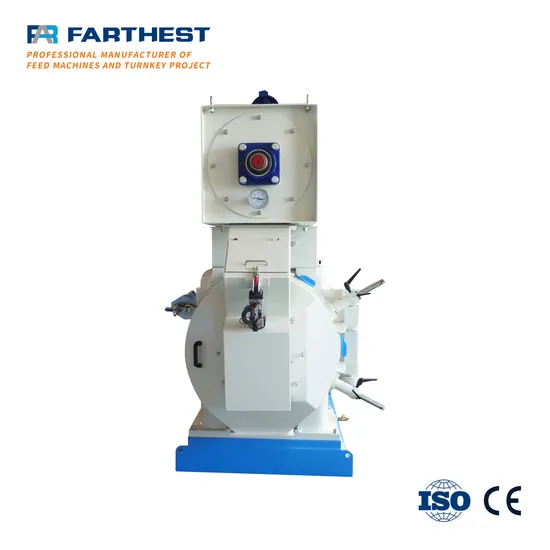

High Protein Cattle Feed Pellet Processing Line Machinery for Export

Product Description

Product Description

Features
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and CNC;
6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is available to ensure reliable bearing lubrication;
7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling and assembling and more reliable use. Product Parameters

Main Technical Parameters

Parameters Model	Output (t/h)	Main Power (kw)	Power Of Conditioner (kw)	Power Of Feeder (kw)	ID Of Die (mm)	Pellet Size (mm)
SZLH400	6-10	75/90	5.5	1.5	¢400	¢2-18
SZLH420	8-12	110	5.5	1.5	¢420	¢2-18

Related Products
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 20 years of experience in this industry.

2. Q: How can I get to your company?
A: You can get a flight to Nanjing Airport. We are just about 40-50mins away from Nanjing Airport.

3. Q: How long is your guarantee?
A: One Year (Calculated from the equipment arrives the customer's side.). After this period we will definitely
still support you when needed. You will be welcome to contact us with any problem might experience.

4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the
commissioning and we send one supervising engineer.
Packaging & Shipping
Exported Equipment
AR products have been exported to South Korea, Iraq, Denmark, Egypt, South Africa, Vietnam etc. The customers have been pleased with the products whatever on design or quality. We also get many new clients introduced by them. Our goal is to make each initial transaction into a continually beneficial and lasting business relationship.
Exhibition
Last year, we attended two big exhibitions, one was VIV China 2012, held in Beijing during 23rd- 25th Sep, 2012; another was The Tenth (2012)China Animal Husbandry Expo, held in Nanjing. We have completed several successful operations from the two exhibitions, and more importantly our company and products are well known by more customers. This year, we hope we could get create more mutually beneficial business relationships in The Eleventh(2013) China Animal Husbandry Expo, which will be held in Wuhan during 18th-20th May, 2013. Our tear circle hammer mill,pellet mill, mixer, crumbler will be showed on this exhibition.
Company Profile
CHANGZHOU FARTHEST MACHINERY CO., LTD is a comprehensive manufacturer of feed machinery, bio-energy machinery, organic fertilizer machinery and turn key projects. We are dedicated to service for domestic feed industry customers. FAR has worked in this field for almost 20 years and wins an outstanding reputation in feed machinery. Clients from home and abroad give a high praise to FAR products.

---
