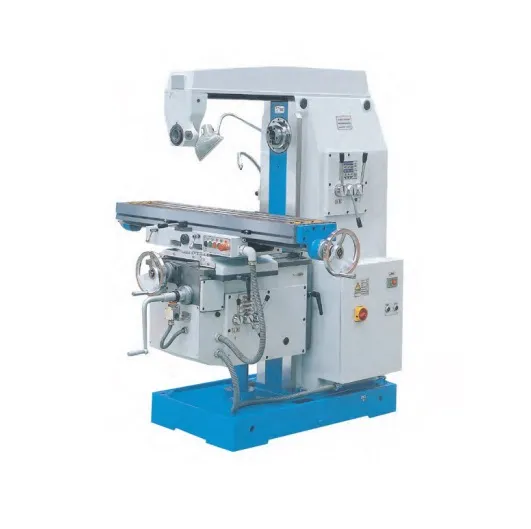

45 Degree Rotary Table Horizontal Milling Machine (HUM32A)

Product Description

Features:
Rectangular table guideways with high stability,
hardened and ground table surface,
automatic feeds on X ,Y axis,motorized lifting and falling of table on Z axis.
Specifications

	unit	HUM32A
TABLE :
Table size	mm	1320X320
T slot	no	3
Size ( Width )	mm	18
Centre distance	mm	70
Max. load of Table	kg	500
Max.swivel of table	degree	±45º
machining range :
table Longitudinal travel(manual/auto)	mm	700/680
table Cross travel (manual/auto)	mm	255/240
table Vertical travel(manual/auto)	mm	320/300
MAIN SPINDLE :-
Spindle taper		iso50 7:24
quill travel	mm	No
spindle speed /step	rpm	30-1500/18
vertical spindle axis to column surface	mm	No
vertical spindle nose to table surface	mm	No
horizontal spindle axis to table surface	mm	30-350
horizontal spindle axis to arm bottom	mm	155
arm travel	mm	500
FEEDS :-
Longitudinal/cross feed	mm / min	15-750/18
Vertical/step	mm/min	5.7-280/18
Longitudinal/cross rapid speed	mm / min	2300
Rapid Traverse vertical	mm/min	770
POWER :
main motor	kw	7.5
(X/Y/Z) feed motor	kw	1.5
coolant motor	kw	0.125
others
package dimension	cm	216x178x199
overall dimension	cm	229.4x177x166.5
N/W,G/W	kg	2650

Packing list

N0.	Name	Model	Qty
1	Machine	HUM32A	1
2	Mill chuck(7:24)	ISO50(4,5,6,8,10,12,14,16)	1sets
4	wrench	S17-19,S21-24,S27-24,S32-36	each 1
5	Single head wrench	14	1
6	Inner-haxagonal spanner	5,8,10	each1
7	Shell end milling abor	ISO50-ф40	1
8	Reduction sleeve	ISO50/MT4	1
9	Oil gun		1
10	Horizontal draw bar	M24-M16	1
11	Horizontal milling bar	Φ22,ф27,ф32	Each 1sets
12	Foundation bolt	M20X500	4sets
13	Operation manual		1
14	Quality certificate		1
15	Packing list		1

---
