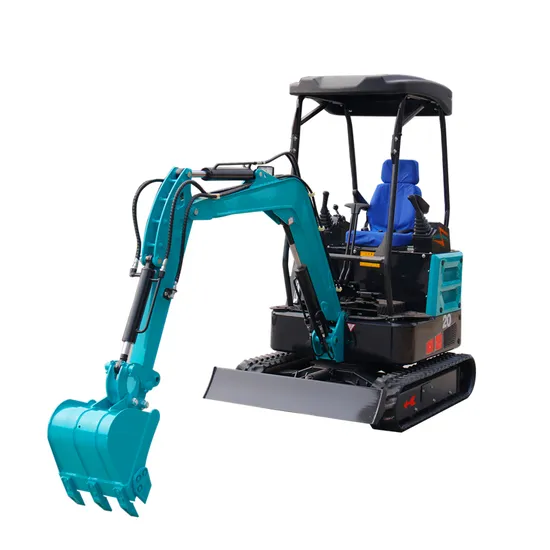

1 Ton Mini Digger Kubota Engine Small Cheap Excavator for Trenching and Repairing Sewer Lines

Product Description

Product Description
The crawler mini excavator is small and flexible, and it can complete the work efficiently in tight places
High working efficiency model with Japan engine optional For personal use or leasing purpose Compact Designs with Exceptional Features Wholesale WS-20 Mini Excavator for Compact Size Work Load-sensitive hydraulic system, standard high and low speed, large arm side swing, chassis telescopic, electronically controlled handle, dual slewing motors, double row slewing support, and hydraulic pilot operation can be equipped with a cab.
WS-20 Mini Excavator For Sale New size class of Wishope mini excavators WS-20 mini excavator provides a new size class within the Wishope lineup. Featuring a zero tail swing design, it can travel between homes on tight lot lines or work next to existing structures where other equipment doesn't fit. Maneuverable and powerful, it can take on projects previously done using manual labor.
Perfectly adaptable to mini excavator attachments with different functions The WS-20 mini excavator features an increased, integrated counterweight to enhance digging and lifting performance, a backfill blade, and a rubber track undercarriage for superior flotation and traction. A long-arm option is available when you need more reach and dig depth.
Detailed Photos
Product Parameters

NO.	Specification	Unit	WS-20H
1	Operating Weight	kg	1500
2	Bucket Capacity	m³	0.35
3	Bucket Width	mm	400
4	Travel Speed	Km/h	2-3
5	Grade Ability	%	35
6	Engine brand	/	Kubota D722
7	Rated Power	kW	10.2
8	Cylinders Quantity	/	3
9	Cooling type	/	Water Cooling
10	Fuel consumption	L/h	1.4
11	Travelling Control	/	Hydraulic Pilot
12	Overall Length	mm	2200
13	Overall Width	mm	1100
14	Overall Height	mm	2200
15	Counterweight ground clerance	mm	400
16	Track length on Ground	mm	1300
17	Track shoe width	mm	180
18	wheel Gauge	mm	420
19	Track Extension Range (additional function)	mm	950-1300
20	Swing Angle(L&R)	°	60
21	Min.Front Swing radius	mm	1100
22	Max.Diging radius	mm	2400
23	Max.Digging Depth	mm	1850
24	Max.Digging Height	mm	2740
25	Max.Dumping Height	mm	2400

Various models of mini excavators:
WS-17 WS-18 WS-15
WS-13 WS-12 WS-08
Hot Product
DT350 DT260 DT230

DT65 DT160 DT180
DW80 DW88 DW150
Company Profile
Established in 2014, Wishope Machinery focus on construction & agricultural machinery products manufacturing and export for around 10 years. The R&D team has fully learned the design concepts of Japanese and Korean hydraulic excavators, with years of sales and modification, all the product design is very mature and stable. Over 250 employees and 22 senior engineers. We export small to big excavators to over 20 countries such as Indonesia, Malaysia, Colombia, and mini excavators exported to the USA and to European countries.Wishope Hydraulic Excavators - innovative construction machinery: Digging, excavating and shoveling are the main tasks of the excavator. Whether in civil engineering digging a pit or dredging in a body of water: Our hydraulic excavator offers the optimum machine for every task.Get an overview of all micro excavators and find the right construction machine for your application. A wide range of attachments are available for our machines. Excavator buckets and shovels, vibrators and hammers, and grabs make your excavator a real working machine.China's excavators are growing at a high annual export sales rate of about 15% in the past 3 years. There are big Chinese excavator like our Dootech. After decades of technological precipitation, Chinese excavators have been able to find a balance between price and quality in a very balanced manner, so as to achieve high export sales. Packaging & Shipping
Our Advantages
What Kinds of Excavators We Can Provide?Hydraulic excavators are divided into many types according to the tonnage of the model. 1-3 tons are called micro excavators, 6-13 tons are called small excavators, 15-39 tons are called MIDI excavators, and more than 40 tons are called large-scale excavators.We can provide all kinds of crawler excavators, including Dootech brand with Korean technology, mini long-reach excavators with Japanese technology, etc.At the same time, we also customized accessories, such as the modification of long arms, OEM amphibious excavators, and the modification of excavator attachments, the spare parts of various brands of excavators.

---
