Plastic Film PP Pet Bottle Recycling Machine

Product Description

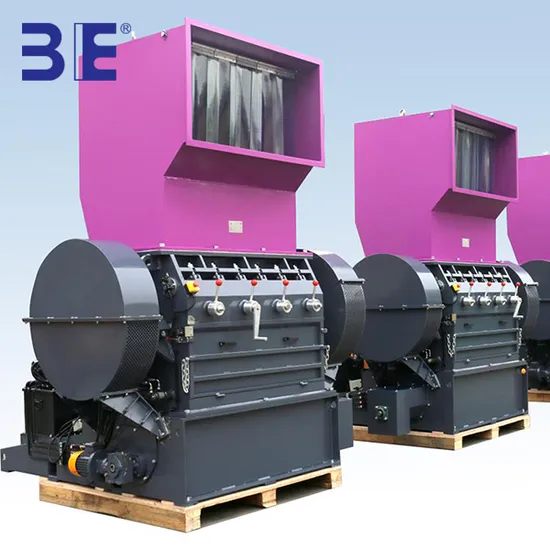

Plastic Crusher
Rigid welded steel structure is used for casing. Split block structure is applied to the Plastic Crusher, making it convenient to clean and remove the blades and maintain the machine. The structure of blade roller can be changed according to different crushing materials. Optional air conveying collecting units and sound-proofed execution are available according to your requirements. The plastic granulator is suitable for crushing pouring head, pipe, sheet, film, nylon, rubber, plastic bottle and big drainage opening materials.

Medium Crusher PC42100RII Description
Adopted advanced technologies, these models are efficiently capable for shredding materials that are quite thick and tough such as those wasted junks in the die, large plastic pipes, packing buckets and splints of the fork lift truck and especially for recycling different materials such as plastic, rubber and wood in shredding ways.
Shredding with speed of 85r/pm; Little noises; Low power consumption; Well-proportioned in length of shredded materials;
Symmetry-Rotate-Knives-Design provides possibility for redeploying Knives for 4 times, facilities for operation and longer life span.
Hydraulic feeding system providing facilities for adjusting feeding speed and pressure for different loads in different materials so that the whole could work automatically.
Pneumatic Buffer Rod for unbolting brackets in the screen mat that reduce labor and enhance safety.

Model Item	Unit	PC3260	PC3280	PC4280	PC42100
A	(mm)	1580	1720	1765	1765
B	(mm)	1450	1630	1660	1900
C	(mm)	600	800	800	1000
D	(mm)	410	410	550	550
E	(mm)	1420	1465	1845	1845
H	(mm)	1860	1910	2435	2435
Rotor Diameter	(mm)	φ 320	φ 320	420	φ 420
Main Shaft Speed	(r/min)	580	580	530	530
Screen Mesh	(mm)	φ 12	φ 12	φ 12	φ 12
Rotor-knives	(PCS)	3X2	3X2	3X2	3X2
Stator-knives	(PCS)	2X2	2X2	2X2	2X2
Main Motor Power	(KW)	15	22	37	45
Weight	(KG)	1470	1730	2800	3230

Company profile

3E group is a comprehensive company specialized in developing, manufacturing, selling and providing recycling machinery solutions. Our main entity "Guangzhou 3E Machinery Co., Ltd." was founded in 2003, and now it has become a modern enterprise integrating "crushing" and "recycling industry".

Technology is the core competitiveness of 3E group. We actively participate in the recycling market and maintain cooperation with well-known European and American enterprises. At the same time, 3e Group continues to improve and innovate, and has obtained 42 utility model patents and 13 invention patents so far.

"Efficiency, economy and environmental protection" is the traditional concept of 3E group. The company has independent intellectual property rights and strong technical team, and its products have been sold to more than 90 regions and countries, such as the United States, Europe, Australia, Southeast Asia, Latin America, the Middle East, etc.

Authentication

We have obtained 42 utility model patents and 13 invention patents.

---
