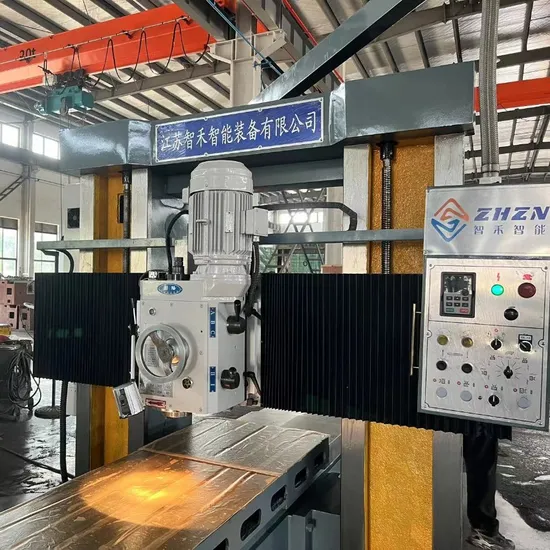

Gantry Type Milling Machine X2020A Worktable 4000X2000

Product Description

This machine is suitable to process on plane, bevel, groove and so on with various milling cutter, it can process workpiece in high speed under heavy load for the powerful and rigid specicality

Description		X2020A	X2020B	X2020C
Max. Processing capacity(L × W × H)	mm	4000X2500X1300	6000X2500X1500	8000X2500X1500
Distance between columns	mm	2600	2600	2600
Size of worktable	mm	4000X2000	6000X2000	8000X2000
Power of vertical milling heard motor	KW	11	11	11
Power of side milling head motor	KW	7.5	7.5	7.5
Number of milling head	piece	2	2	2
Speed of cutting feed		stepless step change
Range of the spind speed		9 (66-655)
Number of T-slots		9	9	9
Width of the T-slot	mm	28	28	28
max. load	Kg	18000	20000	20000
Weight of the machine	Kg	50000	60000	72000
Overall dimensions of machines (L × W × H)	Mm	10000X4500X3300	14000X4500X3500	18000X4500X3500

WORKSHOP
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
