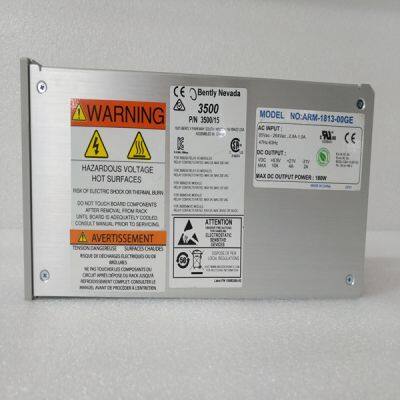

BENTLY 3500/15 106M1079-01

Product Details

Product Description

Product Description
Brand:BENTLY
Type:3500/15 106M1079-01
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Our main products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
The Extr/Adm setpoint range must be defined in the program mode. Program settings ‘Min Extr/Adm Setpoint’ and ‘Max Extr/Adm Setpoint’ define the range of the Extr/Adm setpoint and control. When a raise or lower Extr/Adm Setpoint command is issued, the setpoint moves at the programmed ‘Extr/Adm Setpt Rate’ setting. If an Extr/Adm raise or lower command is selected for longer than three seconds, the Extr/Adm setpoint will move at the fast rate which is three times the Extr/Adm setpoint rate. The Extr/Adm setpoint rate, fast rate delay, and fast rate can all be adjusted in the Service mode.
The shortest length of time a setpoint will move for an accepted raise or lower command is 120 milliseconds (240 milliseconds for a Modbus command). If the Extr/Adm setpoint rate is programmed for 10 psi/sec, the smallest increment it will move is 1.2 psi (2.4 psi for Modbus). A specific setpoint may also be directly entered through the 505E keypad or Modbus communications. When this is performed, the setpoint will ramp at the ‘Extr/Adm Setpt Rate’ (as defaulted in Service mode). To “enter” a specific setpoint from the 505E keypad, press the Ext/Adm key to view the Extr/Adm control screen, press the ENTER key, enter the setpoint level desired, then press the ENTER key again. If a valid number was entered, equal-to or between the min and max setpoint settings, the setting will be accepted and the Extr/Adm setpoint will ramp to the “entered” setpoint level. If an invalid number is “entered”, the setting will not be accepted and the 505E’s screen will momentarily display a value out-of-range message. When ramping to a valid setting, the setpoint ramps at the Extr/Adm Setpoint “entered” rate which is defaulted to the E/A setpoint rate. This “entered” rate is tunable through the Service mode. EXTR/ADM Setpoint Tracking This feature is programmable and usable only if the 505E is programmed for an admission or extraction/admission application. To reduce the number of steps required to enable Extr/Adm control bumplessly, the Extr/Adm setpoint can be programmed to track the Extr/Adm process input when disabled. This tracking feature allows the Extr/Adm PID to be satisfied when enabled, thus there is no immediate or radical process correction required. After the Extr/Adm control is enabled, its setpoint can be moved, as required, to another setting. EXTR/ADM Setpoint with No Tracking If the Extr/Adm control is programmed not to use the setpoint tracking feature, the setpoint will remain at its last setting (running or shutdown). With this configuration, when Extr/Adm control is enabled and the sensed process signal does not match setpoint, the Extr/Adm control will ramp the Extr/Adm process up or down to match the two signals. When the 505E is powered-up, the setpoint is reset to the ‘Setpt Initial Value’. With this configuration, if one of the permissives is lost or Extr/Adm control is disabled, the Extr/Adm setpoint will remain at its last setting until otherwise adjusted. Refer to Volume 2 of this manual for further information on Service mode and online tunables. All pertinent Extr/Adm control parameters are available through the Modbus links. See Chapter 6 for a complete listing of Modbus parameters. Remote Extr/Adm Setpoint The Extr/Adm setpoint can be positioned through an analog signal. Optionally, one of the 505E’s analog inputs can be programmed to position the Extr/Adm PID setpoint. This allows the Extr/Adm setpoint to be positioned remotely by a process control or distributed plant control system.

---
