Injection Molding Machine for Small Parts

Product Description

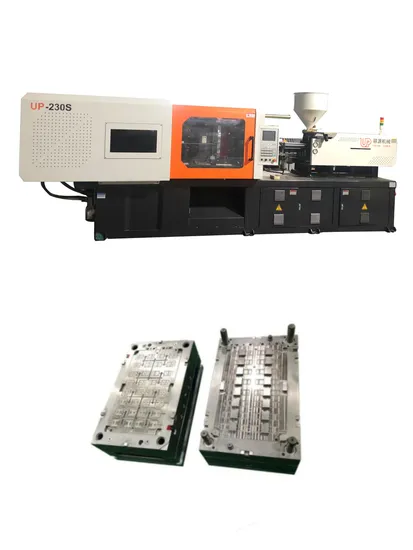

Servo Type Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Manufacturer of Servo Type Injection Molding Machines in China, ranging from 70T to 3000T. Our machines are equipped with hydraulic, electrical, and control systems from international famous brands, featuring European design concepts and providing top-notch products and services in Mainland China.
Advantages of Servo Injection Molding Machines:
High Energy Efficiency: Optimized servo energy-saving technology for high production efficiency and low unit energy consumption.
High Precision: Enhanced mechanical structure and Austrian Koch controller for improved service life and injection accuracy.
Efficient: Optimized clamping unit for stable high-speed mold opening and closing, reducing cycle times.
High Security: Compliant with national security standard GB22530-2008 for increased safety and reliability.
High Stability: Dual cylinder injection molding design ensures stable screw backrest and longer service life.
The structure of our servo injection molding machines is optimized through finite element analysis software to meet high stiffness, strength, and production speed requirements. Energy-saving and efficient, suitable for molding various high-precision plastic products.

Technical Parameters	Model UP-230T
Injection Unit	A	B	C
Screw diameter (mm)	50	55	60
Shot Volume (cm3)	461	558	664
Injection weight (g)	415	502	598
injection pressure (Mpa)	169	142	121
Screw speed (rmp)	155
Clamping Unit
Clamping force (KN)	2300
Open stroke (mm)	475
Max Mold height (mm)	550
Min Mold height (mm)	220
Space between tie bars(mm)	530*530
Ejector force (KN)	70
Ejector stroke (mm)	135
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	22(21.2)
Heating power (KW)	14.2
Machine dimension (M)	5.8*1.55*2.15
Machine weight (T)	6.3
Oiltank cubage (L)	350
