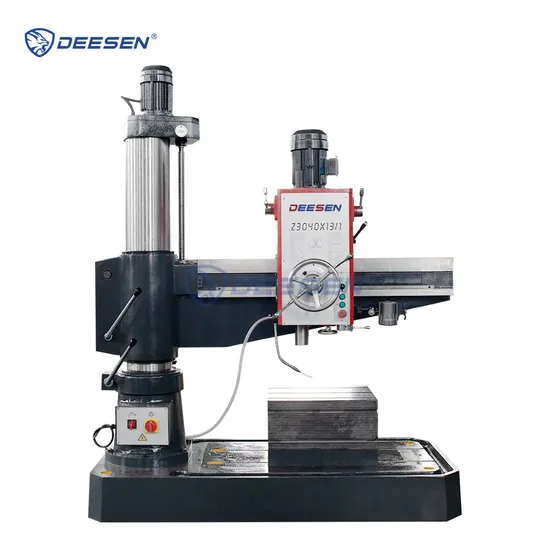

Custom Drilling Machinery Z3040*13 High Reliabi Easy Flexible Operation Radial Drilling Machine

US$3,500.00-4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3040X13-1
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max. Drilling Diameter
40mm
Spindle Speed Range
75-1220rpm
Distance Spindle Nose and Work Surface O
320-1220mm
Rocker Arm Lifting Distance
580mm
Rocker Arm Lifting Speed
0.02m/S
Spindle Travel
200mm
Spindle Feed Steps
3
Spindle Speed Steps
6
Spindle Feed Range
0.1-0.22 mm/R
Main Motor Power
2.2kw
Rocker Rotary Angle
360
Movements Motor Pwower
1.5
Transport Package
Wooden Case
Specification
1800*810*2300mm
Trademark
wewoo
Origin
China
HS Code
8459619000
Production Capacity
300/Month

Packaging & Delivery

Package Size
200.00cm * 100.00cm * 250.00cm
Package Gross Weight
4000.000kg

Product Description

custom drilling machinery Z3040*13 High reliabi Easy flexible operation Radial Drilling Machine
Product Description

Specifications
SPECIFICATIONS Units Z3040x13
Max. drilling dia. mm 40
Distance between spindle nose and table surface mm 360-1300
Distance from spindle axis to column surface mm 260-1200
Spindle travel mm 200
Spindle speed range rpm 75-1220
Spindle speed steps - 6
Spindle feed range mm/r 0.10-0.22
Spindle feed steps - 3
Main motor power kw 2.2
Machine weight kg 2200
Overall dimension mm 1800*810*2300



Detailed Photos

CENTRALIZED MECHANICAL
SHIFT
Concentrated mechanicalspeedchange.12 steps from 40-1896r/mm.convenient and quick
Radial Arm Clamping
Radial arm mechanical clampingHigh stability.
Column Clamping
Vetical column mechanical clampingHigh stability and stronger
Table
High Audio quenching table.
Enhanced accuracy & rigidity.
Electrical BoX
High quality imported electrical box.High performance &long uselife
