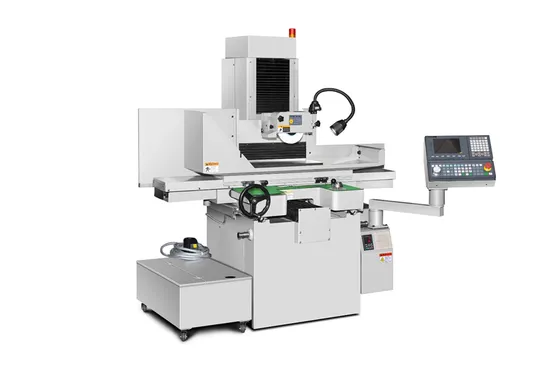

Three Axies 250CNC Multifunction Grinding Machine Tool

Product Description

250/2550CNC Surface Grinding MachineThree Axies 250CNC Multifunction Grinding Machine Tool
We follow a policy of continuous improvement of all our products,and reserve the right to change specifications ,mechanics,or designs at any timewithout notice or obligation.

	parameter	unit	CNC-250	CNC-2550
general picture	Table size (x*y)	mm	200×500	250*500
	X axis travel	mm	580	580
	Y axis travel	mm	230	280
	Max center of wheel to table	mm	380	380
	Maximum load	kg	200	200
Table	Table T cell specification	mm×N	14×1	14×1
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.001	0.001
	Single feed		0.1~10	0.1~10
	Fast moving speed	mm/min	0~1200	0~1200
Z axis	Minimum feed	mm	0.001/0.01	0.001/0.01
	Fast moving speed	mm/min	0~800	0~800
grinding	grinding wheel size max	mm	Φ200×Φ31.75×19
	grinding wheel speed	R.P.M	0~3600	0~3600
motor	spindle motor	HXP	2×2	2×2
	the Z axis motor	W	750	750
	the Y axis motor	W	750	750
	the X axis motor	W	1500	1500
	cooling motor	W	90	90
Size	height of machine	mm	2000	2000
	floor space	mm	2000×1350	2000×1450
	weight(about)	kg	1450	1550

Cheng Yu Machinery Technology Co., Ltd. Was established in Dongguan City, Guangdong Province, is from Taiwan 30 years of grinding machine manufacturing experience, technology accumulation of a group of technical personnel. With the rapid development of CNC machine tools, high-speed, high-precision, composite, intelligent, open, parallel drive, networking, green environmental protection has become the development trend and direction of CNC machine tools. Dongguan Chengyu Machinery Technology Co., Ltd. is a company specializing in the production and processing of machine tools, machine tool accessories and other products, uphold the "technology, innovation, reliable" business philosophy, "meticulous" quality policy, "to provide quality products, service customers. " We start from the study of customer's process, technology, type of production, requirements for quality. Design, production technology level as the support, and constantly improve the applicability of the development of products, expand the development of numerical control industry space, in product positioning, to achieve high automation, high precision, high quality, with a complete and scientific quality management system, first-class equipment and superb technology. In response to the market demand, Chengyu Machinery specializes in the design and manufacture of high-precision CNC surface grinding machine, CNC forming machine, four-axis punch grinder, vertical slider grinder and gantry rail grinder, as well as the design and manufacture of industrial robots, automated production lines and integrated applications. The following is a brief introduction of CNC grinding machine series products: I. HS series 618 / 250 / 3060 / 4080 / 40100 (servo type / hydraulic type) Processing capacity: Surface grinding, grooving Patented hydraulic control system (hydraulic type) Function: Equipped with grinding program: Flat surface, groove cutting. Feed mode: Front / back / left / right selectable, each grinding program memory feed mode. Grinding wheel overload, automatic shutdown. II. (servo type / hydraulic type) Processing capacity: Surface grinding, grooving, combined scheduling Patented hydraulic control system (hydraulic type) Function: Equipped with various grinding programs: Surface grinding, groove cutting, sole grinding, side grinding, unequal distance and unequal depth displacement grinding. Grinding wheel dressing: The bottom plane dressing, according to the set rough grinding / fine grinding dressing time and dressing amount, in the grinding cycle, automatic dressing, automatic compensation. Feed mode: Front / back / left / right selectable, each grinding program memory feed mode. Equidistant grooving, not equidistant unequal 3. Four-axis CNC grinding machines are divided into horizontal and vertical types Processing types: Arbitrary equal division, skipping tooth processing Waist circle, enter AB size Triangle fillet, enter inscribed circle size B and fillet size R Quadrilateral fillet, enter side length A and side length B and fillet size R Eccentric circle, enter eccentricity and starting and ending diameters Circle, enter starting and ending diameters Arc, enter arc size and rotation angle Step difference, rotation profile, etc. Processing schedule can be saved as processing file for easy next call

---
