| US$32,000.00-39,800.00 | 1 Piece (MOQ) |

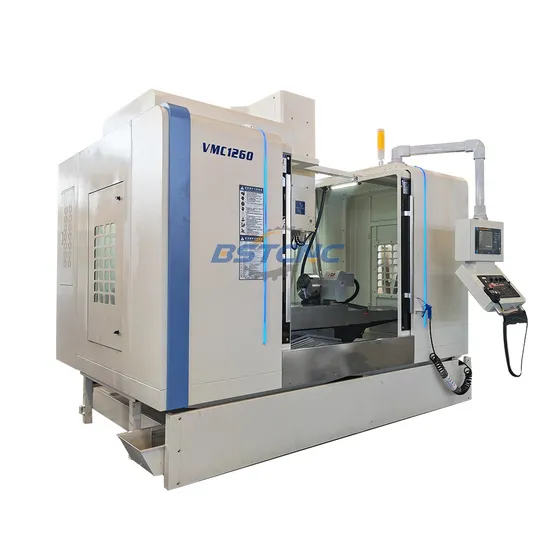

| Items | VMC1260 CNC MACHINING CENTER | |
| Travel | X axis | 1200mm |
| Y axis | 600mm | |
| Z axis | 600mm | |
| Spindle nose to table | 100-700mm | |
| Spindle nose to column | 667mm | |
| Feed | max X rapid feed | 24m/min |
| max Y rapid feed | 24m/min | |
| max Z rapid feed | 24m/min | |
| Cutting feed | 1-10000mm/min | |
| Torque | X:18N.m Y:18N.m Z:22N.m | |
| Table | Table size | 1200×600mm |
| Max load | 800Kg | |
| T slot | 5×18×100mm | |
| Spindle | Type | Belt |
| Speed | 8000rpm | |
| Spindle taper | BT40-150 | |
| Main motor | 11KW/15KW | |
| Accuracy | Accuracy (JIS) | ±0.005/300mm |
| Repeatability (JIS) | ±0.0075mm | |
| Other | Weight | 6500 Kgs |
| Machine Size | 3400×2350×2600 | |
| Standard configuration: -GSK218M/25i Control system; -Taiwan BT40-150-8000RPM spindle; -Taiwan Arm Type Tool Changer 24T; -Taiwan Hiwin linear guideways and ball screw; -Three color alarm Lamp; -Automatic Central Lubrication System and Cooling system; - Full Enclosure Machine Guard; | Optional configuration -Fanuc ,Siemens ,Mitsubishi,KND,HNC.... -Chain chip conveyor ; -Spindle oil coolant; -Taiwan TJR brand the 4th axis ; -Renishaw tool setter TS27R ; -Online measuring system OMP60; -Water out of the spindle center; |
