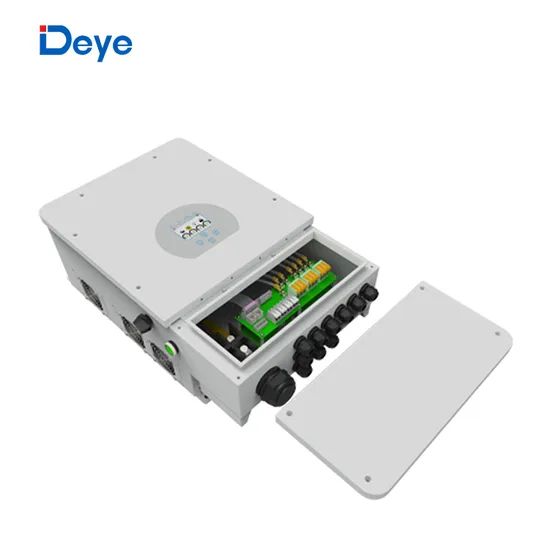

| Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
| Battery Input Data | | | | | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60V |
| Max. Charging Current (A) | 120A | 150A | 190A | 210A | 240A |
| Max. Discharging Current (A) | 120A | 150A | 190A | 210A | 240A |
| Charging Curve | 3 Stages / Equalization |
| External Temperature Sensor | Yes |
| Charging Strategy | Self-adaption to BMS |
| PV String Input Data | | | | | |
| Max. DC Input Power (W) | 6500W | 7800W | 10400W | 13000W | 15600W |
| Rated PV Input Voltage (V) | 550V(160V~800V) |
| Start-up Voltage (V) | 160V |
| MPPT Range (V) | 200V-650V |
| Full Load DC Voltage Range (V) | 350V-650V |
| PV Input Current (A) | 13A+13A | 26A+13A |
| Max. PV ISC (A) | 17A+17A | 34A+17A |
| Number of MPPT | 2/1+1 | 2/2+1 |
| AC Output Data | | | | | |
| Rated AC Output and UPS Power (W) | 5000W | 6000W | 8000W | 10000W | 12000W |
| Max. AC Output Power (W) | 5500W | 6600W | 8800W | 11000W | 13200W |
| Peak Power (off grid) | 2 times of rated power, 10 S |
| AC Output Rated Current (A) | 7.6 | 9.1 | 12.1 | 15.2 | 18.2 |
| Max. AC Current (A) | 11.4 | 13.6 | 18.2 | 22.7 | 27.3 |
| Max. Continuous AC Passthrough (A) | 45A |
| Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac,230/400Vac |
| Grid Type | Three Phase |
| Current Harmonic Distortion | THD<3% (Linear load<1.5%) |
| Efficiency | |
| Max. Efficiency | 97.6% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| General Data | |
| Operating Temperature (ºC) | -45~60ºC, >45ºC Derating |
| Cooling | Smart cooling |
| Noise (dB) | ≤45dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 33.6 |
| Size (mm) | 422W×699.3H×279D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 years |
