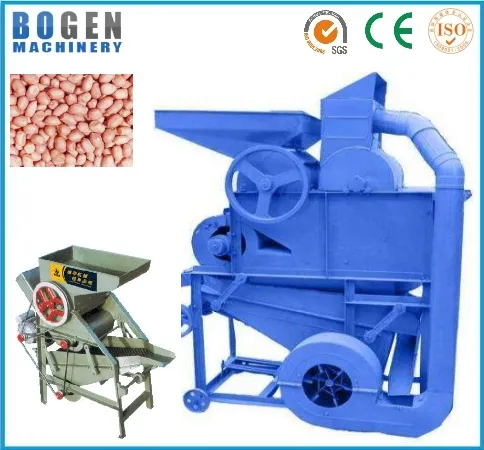

Professional Manufacture Groundnut Peanut Sheller Machine

Product Description

Peanut sheller machine, Peanut shelling machine, Peanut huller machine, Peanut peeler, Peanut peeling machine, Peanut decorticator
Bogen brand series peanut shelling machine according to JB / T5688.1-2007 "peanut sheller technical conditions" design and manufacturing, in line with JB / T5688.2-2007 "peanut sheller test method" standard. Shelling by suspension sleeve, wind primary, secondary gravity separation cleaning, peanuts after the selection can be automatically loaded sacks, it has a simple and compact structure, flexible operation, easy maintenance, high shelling efficiency, performance high, saving labor, etc., are fully applicable to individual households peanut processing, grain, oil and food processing industries peanut sheller job. The majority of flower production areas and the ideal equipment for individual specialist wealth.
Technical Parameters:

No.	Items		unit	Parameter
1	Model		/	BG-1000
2	structure type		/	Double drum
3	Dimensions (length X width X height)		mm	1330X750X1570
4	Weight (without motor)		kg	160
5	Motor Power		Kw	2.2--3.0
6	Sheller agencies	Type	/	Double drum
		Drum	/	Suspension sleeve
		Length of the roller	mm	300
		Roller diameter	mm	220
		Roller Speed	r/min	290
		intaglio type	/	Grating type
		Sheller gap	mm	20
		Mesh size	mm	9--11
		Grating diameter	mm	6
7	Screening mechanism	Type	/	proportion of scree
		Swing	mm	35
		frequency	Hz	750
		Screen surface inclination	(o)	11045/
8	Winnowing agencies	Type	/	Centrifugal
		Fan diameter	mm	Φ248
		Fan speed	r/min	2000
9	Wind feed mechanism	Type	/	Centrifugal
		Fan diameter	mm	Φ300
		Fan speed	r/min	2200

Productivity kg/h	1000-1500
Crushing rate %	≤4.0
Injury rate %	≤3.5
Stripping the net rate %	≥98
Impurity rate %	≤3.0
Loss rate %	≤0.5
Load noise dB(A)	≤90

---
