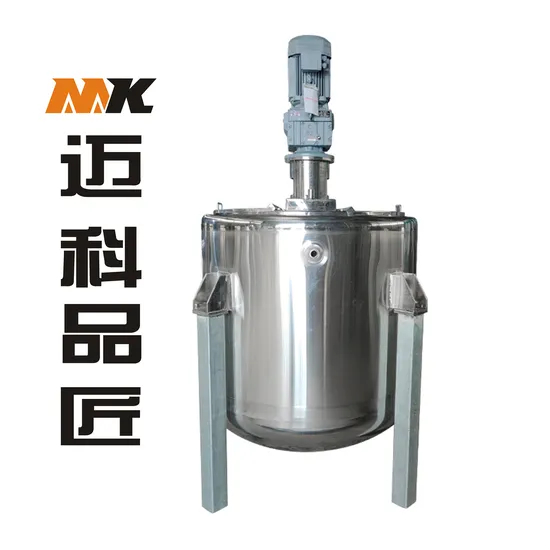

Maike 1000L Stainless Steel Mixing and Blending Tank Food Making Machine Fermentation Tank

Product Description

Product Overview
Mixing tank is mainly used for mixing, mixing, blending and homogenizing materials. Stainless steel mixing tank effectively shortens the mixing time, saves labor and speeds up production. It is the main equipment for modern industrial production.
Product structure
Mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft seal device, etc. it can also beequipped withheating device or cooling device according to the process requirements.
Technical parameter

Type	Volume(L)	Cylinder Size(mm)	Motor Power(KW)	Speed(rpm)	Material
MK-JBG-0.5	50	300	0.75	30-180	SUS304 / SUS316L
MK-JBG-1	100	500	0.75	30-180	SUS304 / SUS316L
MK-JBG-2	200	600	1.1	30-180	SUS304 / SUS316L
MK-JBG-3	300	700	1.5	30-180	SUS304 / SUS316L
MK-JBG-5	500	900	2.2	30-180	SUS304 / SUS316L
MK-JBG-8	800	1000	3	30-180	SUS304 / SUS316L
MK-JBG-10	1000	1100	4	30-180	SUS304 / SUS316L
MK-JBG-20	2000	1300	5.5	30-180	SUS304 / SUS316L
MK-JBG-30	3000	1500	7.5	30-180	SUS304 / SUS316L
MK-JBG-40	4000	1700	7.5	30-180	SUS304 / SUS316L
MK-JBG-50	5000	1900	11	30-180	SUS304 / SUS316L
MK-JBG-100	10000	2000	15	30-180	SUS304 / SUS316L

Note: The technical parameters of the mixing tank in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.
According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.

---
