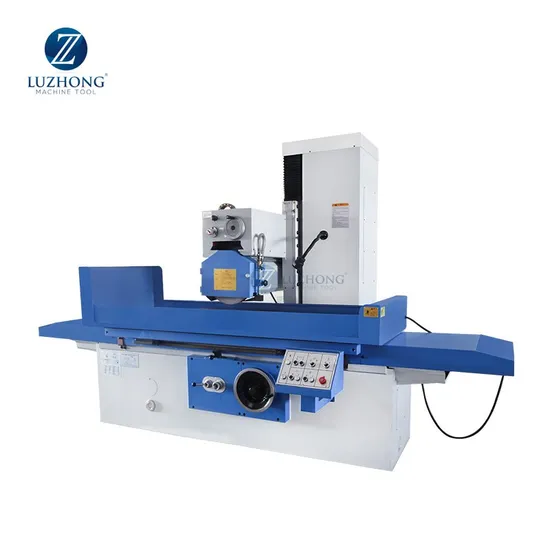

High precision Metal Horizontal Hydraulic Surface Grinding Machine (Surface Grinder M7140X1600)

Product Description

High precision Metal Horizontal Hydraulic Surface Grinding Machine (Surface Grinder M7140X1600)
Product Description
The main performance characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts. Product Parameters
Product main technical parameters:

Description		Units	M7140x1000	M7140x1600	M7140x2000
Size of work table(L x W x H)		mm	1000x400	1600x400	2000x400
Max. Longitudinal movement of worktable		mm	1100	1700	2100
Max. Distance from the spindle centerline to the worktable surface		mm	570	570	570
Max. Cross movement of grinding herd		mm	450	450	450
Max. Vertical movement of grinding head		mm	400	400	400
Vertical movement of the grinding head by hand wheel	Every lattice	mm	0.01	0.01	0.01
	Each turn	mm	1.00	1.00	1.00
Rapid lifting motor	Power	KW	0.37	0.37	0.37
	Speed	R/min	1440	1440	1440
Abrasive wheel dim (L x D x W)		mm	350x127x40	350x127x40	350x127x40
Speed of grinding wheel		r/min	1440	1440	1440
Total power of motor		KW	9	10	12
Power of spindle motor		KW	5.5	5.5	5.5
Power of oil pump motor		KW	3	4	5.5
Processing accuracy		mm	0.015/1000	0.015/1000	0.015/1000
Surface roughness		um	Ra:0.63	Ra:0.63	Ra:0.63
Package(L x W x H)		mm	2800x1750x2350	4500x2000x2350	5500x2000x2350
Net weight		Kg	4000	4100	4200

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
