Basic Info.
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
25A
Transport Package
50PCS/CTN
Production Capacity
1000000/Year
Product Description

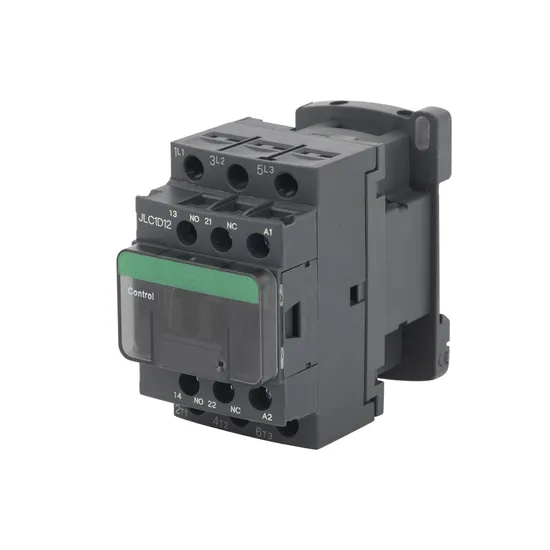

1.Application: JLC1-D series 660V 9-65A AC Contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reve-rsible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air timedelay head, mechanical interlock mechanism, etc. Moreover, it could act as the electromagnetic starter by the direct plug of the thermal relay. This product conforms to the requirement of IEC60947-4-1& GB14048.4 standards.
2.Main parameter
| Type | Rated insulation voltage(V) | Conventional thermal current(A) | Rated operation current(A) | Control power(kw) | No .of contacts | Remark |
| 220V | 380V | 415V | 440V | 660V |
| JLC1-DN0910 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO 3P+NC | Installation method 1.with two screws 2.35mm din rail |
JLC1-DN1200 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO 3P+NC |
JLC1-DN1810 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO 3P+NC |
JLC1-DN2510 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO 3P+NC |
JLC1-DN3210 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO 3P+NC |
| JLC1-DN4011 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | Installation method 1.with three screws 2.75mm or 35mm din rail |
| JLC1-DN5011 | 80 | 50 | 15 | 22 | 25 | 30 | 33 |
| JLC1-DN6511 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 |
| | | | | | | | |
| | | | | | | | |
| Type | JLC1-DN09 | JLC1-DN12 | JLC1-DN18 | JLC1-DN25 | JLC1-DN32 | JLC1-DN40 | JLC1-DN50 | JLC1-DN65 | | |
Pick-up voltage 50/60Hz(V) | (0.85~ 1.1)Us | (0.85~ 1.1) Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85~ 1.1)Us | (0.85 ~1.1)Us | | |
Release voltage 50/60Hz(v) | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | (0.2~ 0.75)Us | | |
| Coil power | 50Hz 60Hz | Pick-up(VA) | 70 | 70 | 110 | 110 | 110 | 200 | 200 | 200 | | |
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | | |
| Pick-up(VA) | 80 | 80 | 115 | 115 | 115 | 200 | 200 | 200 | | |
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | | |
Power consumption (W) | 1.8~2.7 | 1.8~2.7 | 3~4 | 3~4 | 3~4 | 6~10 | 6~10 | 6~10 | | |
3.We commit:
4.Office and working department:
5.Certificate:
6.shipping:
>>
