Titanium Rods High Quality for Medical, Titanium Rod

Product Description

Titanium bar/ Titanium and Titanium alloy rod
Standard: ASTM, AMS, GB/T
Specifications :
Grade:Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Size: dia1.0-dia350mm (+1/-1mm)*4000mm
OD:2mm-219mm
WT:0.3mm-15.24mm
L:with in 18Meters
Standard:ASTM B337,ASTM B338,ASTM B861
Surface Treatment: polished or according to customer's requirement.
Applications:
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.

Product	Size(mm)	Condition	Grade NOS	Specification
Pure Titanium Rods/Bars	Φ(30~400)*L≤5000	Forged Bars	TA1,TA2,TA3	GB/T,ASTM, ASME,AMS, ISO,JIS,MIL
	Φ(8~60)*L≤4000	Rolled Bars

Product	Size(mm)	Condition	Grade NOS	Specification
TC4 Grade5 Titanium Rods/Bars	Φ(30~400)*L≤5000	Forged Bars	TA1,TA2,TA3, TA4,TA9,TA10, TA15,TC4	GB/T,ASTM, ASME,AMS, ISO,JIS,MIL
	Φ(8~60)*L≤4000	Rolled Bars

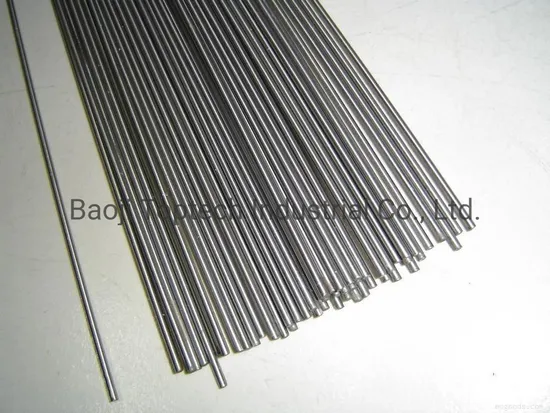

Titanium Rod
(1)Titanium Rods
(2)Material: Gr1,Gr2,Gr3,Gr5
(3)production method: hot forging, hot rolling, polishing/latheing
(4)state: R, M
(5)Size(mm): 3-200x(500-4000)
(6)Standard: GB/T 13810-2007, ASTM F67 ASTM F136,ASTM B348
(7) Chemical requirements

Grade

Ti

Chemical composition

Major composition

residual elements (not more than)

Al

V

Sn

Mo

Pa

Fe

C

N

H

O

Gr1ELI

Bal

/

/

/

/

/

0.10

0.03

0.012

0.008

0.10

Gr1

Bal

/

/

/

/

/

0.20

0.08

0.03

0.015

0.18

Gr2

Bal

/

/

/

/

/

0.30

0.08

0.03

0.015

0.25

Gr3

Bal

/

/

/

/

/

0.30

0.08

0.05

0.015

0.35

Gr4

Bal

/

/

/

/

/

0.50

0.08

0.05

0.015

0.40

Gr5

Bal

5.5~6.75

3.5~4.5

/

/

/

0.30

0.08

0.05

0.015

0.20

Gr5ELI

Bal

5.5~6.5

3.5~4.5

/

/

/

0.25

0.08

0.03

0.0120

0.13

(8)Mechanical properties:

Material	Standard	Tensile strength(Rm/Mpa)min.	ElongationA%min.	Reduction area Z/% min.	Yield strength(Rp0.2/MPa) min.
Gr1	ASTM F67	240	24	30	170
Gr2		400	20	30	275
Gr3		500	18	30	380
Gr4		580	15	25	485
Gr5	ASTMF136	930	10	25	860
Gr5ELI		860	10	25	795

2. Applications
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.

---
