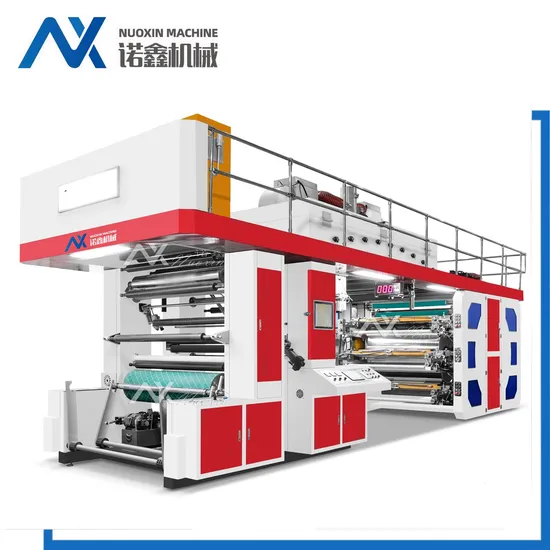

Center Drum Ci 6 Color Plastic Film PE/PP/OPP/Pet Flexographic Printing Machine

Product Description

Company Profile
1. suitable material:
1.drum rolling type
2. PE, HDPE, LDPE. PP. BOPP….
3.Suitable water -base ink or oil-base ink .
4.Suitable: resin or rubber plate, thickness 1.7mm (or follow requested)
Characteristic
1,The machine introduction & absorption of European technology / process manufacturing, supporting / full functional, has the following features:
2,After mounting the plate and registration, no longer need registration, improve yield;
3,Replacing 1 set of Plate Roller (unloaded 8pcs old roller, installed eight new roller after tightening), only 20 Minute registration can be done by printing;
4,The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
5,Maximum production machine speed up 250m/min, registration accuracy ±0.15mm.
6,The overlay accuracy does not change during lifting running speed up or down
7,When machine stop, Tension can be maintained, the substrate is not deviation shift;
8,The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield;
9` With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.

Model	NXCI-41200	NXCI-61200
Color	4 color	6 color
Max. web width	1200mm	1200mm
Max. printing width	1150mm	1150mm
Printing material	40-350g/m2 paper, non woven etc. Plastic film, BOPP, PE, PET, NY PE breathable film Etc. ..........
Max. Mechanical Speed	250m/min
Max. Printing Speed	200m/min
Printing repeat	300-800mm
Max.unwind/rewind dia.	φ1200mm
Printing way	Full width on one side
Printing plate thickness	Photopolymer plate 1.14mm or 1.7mm (customized)

Machine Also can made as client requirement..
Nuoxin is continuously seeking for development of their products. For this reason, we has the right to supply the improved the product without advance notice.
