Advanced 1L Plastic Bottle Blow Molding Machine for Small Production

Product Description

Products Description
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.

Product Paramenters
EXTRUSION BLOW MOLDING MACHINE
HIGH-SPEED DOUBLE STATION EB50H.

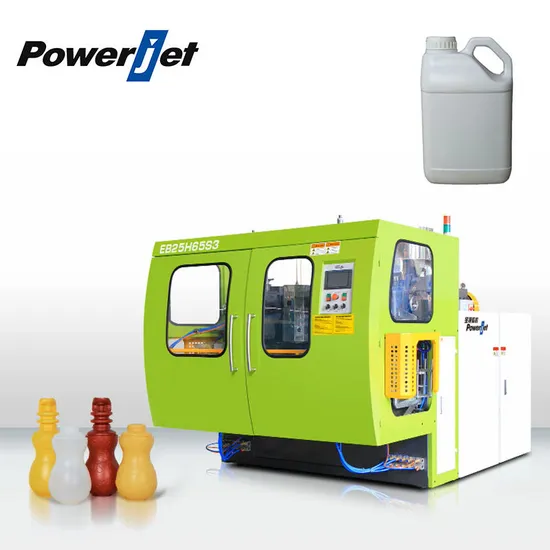

Powerjet Double Station Extrusion Blow Molding Machine EB25H is specialized for manufacturing bottles and containers Max 2.5L.
Max Bottle Capacity - 2.5(L)
Clamping Force - 63(KN)
Extrusion Weight(HDPE) -55(kg/hr)
Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motor
oil bottles, etc Product Parameters

MODEL	UNIT	EB25H55S	EB25H65S	EB25H65-40D	EB25H70S
Max.Product	L	2.5
Clamping Force	kN	53/63
Max. Mold Size(W x H)	mm	380x340
Screw Diameter	mm	Φ55	Φ65	Φ65+Φ40	Φ70
Screw L/D Ratio	L/D	25	25	25+25	25
Screw Rotary Speed	RPM	75	65	65+50	65
Extrusion Weight(HDPE)	kg	35	55	55+11	65
Extrusion Motor Power	kW	11	15	15+4	18.5
Pump Motor Power	kW	7.5
Heating Capacity	kW	14	17	17+4.5	17
Operation Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Air Consumption	m³/min	1.5
Cooling Water Consumption(25ºC)	L/min	50
Machine Dimension (LxWxH)	mm	3460x2250x2300
Machine Weight	kg	3500	3900	4500	4500

Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. was founded in 2000, the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong Province, occupying an area of 130,000 square meters.POWERJET is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and extrusion blow molding machine.

In a production area of more than 50,000 square meters, we have an automated production line and an active staff. Lean organizational structure, efficient operation and ultra-modern machinery and equipment to ensure the production efficiency and flexibility, allows us to ensure quality and the fastest production cycle at the same time, at very competitive prices. Annual production capacity has reach to 4000-5000 injection sets of.

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2:Do you offer guarantee for the products?
A2: Yes, we offer 1 years warranty to our products.
Q3: Where is your factory located?
A3:POWERJET PLASTIC MACHINERY co., LTD. the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong ProvinceWe are warmly welcome you to visit us.

---
