20+ Years Manufacture Corrugated Steel Zinc Metal Glazed Iron Roof/Wall/Roofing Panel Profile Cold Roll Forming Machine with Stacker

Product Description

20+ years manufacture corrugated steel zinc metal glazed iron roof/wall/roofing panel profile cold roll forming machine with stacker
Product Parameters

Machine model	Roof Machine	Operation way	Automatic machine
Certification	ISO9001,CE	Warranty	36 Months
Customized	Customized	Advantage	More 10 years life time
Weight	About 15T	Material thickness	0.3 mm-0.7mm
Suiting material	PPGI steel coils	Cutting material	Cr12 .MOV.
Main motor	7.5KW	Forming rollers qty.	About 27 stations
Shafts diameter	72mm	Roller Material	45# Steel, plated chrome
Machine frame	H350	Wall thickness	40mm
Forming speed	30-35m/min.	Transportation	In Containers,suiting for sea and road transmission.
Trademark	Zhongyuan	HS Code	84552210

Components of roof forming machine
Decoiler (manual decoiler and hydraulic decoiler for option)		1set
Feeding & guiding device		1set
Main roll forming machine		1set
Hydraulic cutting system		1set
Controlling system		1set

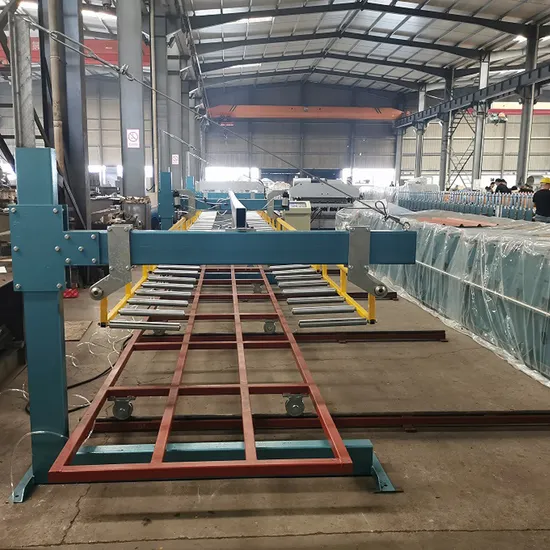

Run out table (auto. Stacker for option)		1set

Our Advantages
Zhongyuan Machinery Manufacturer established in the year 2003,manufacturing and exporting Metal Roll Forming Machines.
All efforts are devoted to the research and development of how to provide customers with high-quality and durable molding machines
Our main product Metal Roll Forming Machine, such as C/Z Purlin Roll Forming Machine, Cold Sheet Forming Machine,Metal Deck Roll Forming Machine,Metal Deck Roll forming Machine. etc.
Our company has successfully established and passed the ISO9001 quality insurance system,
Also they had been approved with CE certificate.
For our roll former, 36 month free warranty,
And our company promises that we will provide product service life maintenance service.
Sales area Experience Machines produced

70+ countries 22+ years 1200+ sets
How to produce roll forming machine in Zhongyuan?
1. Choose good quality raw material for machines
We buy raw material for our made machines such as steel plate. H steel frame and steel pipes from

famous companies in China. For example buy material from An Steel and Hangzhou Iron and Steel Group.
2. Process rollers in CNC Lathe
All Rollers manufactured from 45# steel
CNC machines can improve rollers precision.
Chromate finish on surface to add hardness of rollers.

3. High Accuracy Shafts
Solid shafts dia.72 mm for material thickness.
All shafts are tooled twice by cylindrical grinding machine to ensure final precision. Guarantee buyers
get high accuracy deck sheet from Zhongyuan made machine.

4. Machine frame is processed on surface by 10m planning machine.
Machine frame made from H350 type steel by welding, planned on surface to guarantee precision.
All the screw bolts with grade 8.8(Some other factories use low grade4.8) to ensure fix the machine
structure tightly and long life during the machine long time running. Side wall thickness: 40mm

5. Automatic PLC Control System
Control The Quantity And Cutting Length Automatically
Input the production data(such as production quantity,Length,etc.)on the touch screen , machine
can finish the set production plan automatically.

Components of control system	PLC, Inverter, Touch Screen, Encoder, relays, etc
PLC	Mitsubishi (Japanese brand) (Siemens for option)
Inverter	Mitsubishi (Japanese brand) (Siemens for option)
Touch screen	Mitsubishi (Japanese brand) (Siemens for option)
Encoder	OMRON or NEMICON (Japan brand)
Limit switch	Cut-to-Length Tolerance≤±1 mm

Packaging & Shipping

1.1*20+1*40GP container for loading one
roofing sheet making machine with decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
Delivery : about 90 days
Hot Product
Company Profile
22+ years history in Metal roll forming machine industry
25+ years experienced engineers
Focus on machine quality with reasonable price
59 sets processing equipment, including in 12 sets CNC tooling machines.
Experienced technician can be sent to install machines abroad
100+ sets of machines exported each year
70+ countries using Zhongyuan Machines
Zhongyuan Machinery Factory is much experienced manufacturer of metal forming machinery with ISO quality system. " All-in-house source" - from raw material to the final high-precision roll forming machine,all done in Zhongyuan machinery factory. So that we can control our made roll forming machines quality and delivery time of roll forming machines. Our R&D department is staffed with senior engineers who have 25 years experience in metal forming machine industry.
Zhongyuan company has built a competitive cost advantage through the model of trying large-scale manufacturing and centralized procurement. In the past, present and future, as a well-known metal forming equipment manufacturer in China, Zhongyuan has always been customer-centric, strives for survival by quality, insists on the selection of high-standard raw materials and high-quality accessories, and implements strict process standards and quality standards. To ensure the safety and reliability of product performance, and continue to provide our customers and friends with highly cost-effective products and services.
