PIR Motion Detect Sensor 220VAC Lighting Control Switch for The Air Conditioning

US$10.00 100 Pieces (MOQ)

Basic Info.

Model NO.
HTW-L727
Installation Mode
Ceiling Mounted
Certification
CE
Application
Hotel
Output Delay Time
0~110s/16~250s or Others Optional
Induction Distance
7 M
Lux Range
5lux~500lux Adjustable
Output Signal
Non Voltage Free Contact/Load Contact Optional
Switch
Relay/Reed Optional
Induction Angle
140° Coning Angle
Transport Package
Carton
Specification
86X86X13mm
Origin
China
HS Code
8531100000
Production Capacity
800000/Year

Product Description

Banner
Product Description
Pir Motion Detect Sensor 220Vac Lighting Control Switch For The Air Conditioning
>> General

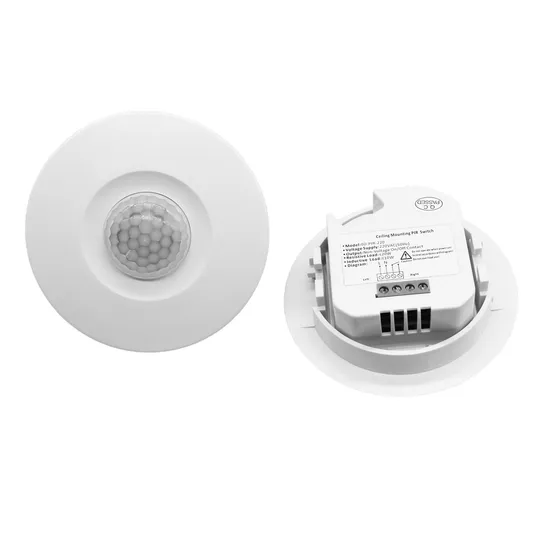

HTW-L727 is a ceiling-mounted passive infrared detector with high stability. It based on infrared automatic control technology, when people enter the induces scope, the special-purpose sensor surveys the mutative infrared spectrum of human body, then the switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.
>> Features
* Bipolarity design: Similar with ordinary wall switch (three connections), load capacity upto1000W.
* Completelyautomatic induction: The switch automatically connect upload equipment, until detecting people not in the induction scope and automatically shut-off timely.
* High-performanced switch relay: Connection load strength, load capacity upto1000W, switches upto 100,000 times.
* Delay time adjustable:5 - 350S
* Low power consumption:Switch own power loss<0.016W/h (year consumes electricity< 0.14 kwh).
* Anti-radar function: Lightning protection components built inside.
>> Electrical Parameter
Induction way Passive Working voltage AC110V or AC240V(50Hz/60Hz) Or 24Vac or Others Optiona
Induction principle Human body Infrared Self power consumption <0.016W/h
Induction distance 7 meters Loading capacity Inductive 500W Resistance 1000W
Induction angle 140 degrees coning angles Loading Equipment Various
Lux range 5LUX-500LUX (adjustable) Ambient temperature -20ºC~50ºC

>> Wiring Diagram
>> Installation
Application

Packaging & Shipping


certifiates
Factory Show
FAQ
