Heavy Duty - Pipe Bevelling Machine

Product Description

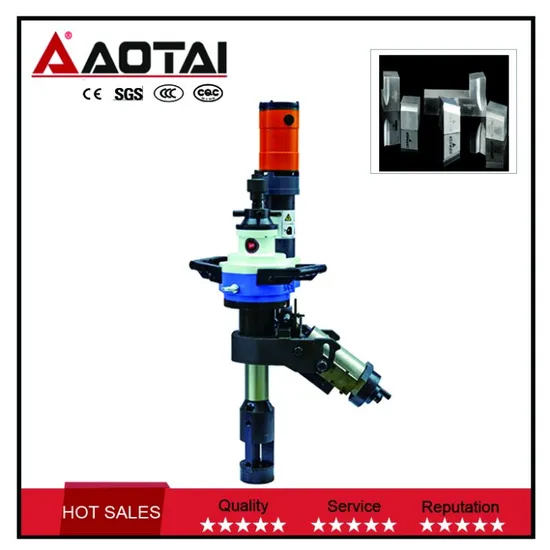

II -PIPE BEVELING MACHINE II-PIPE BEVELING MACHINE is a portable ID mounted machine, which adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces.
Range for pipe ID 80-820mm
OVERVIEW
II-PIPE BEVELING MACHINE is a portable ID mounted machine, which adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces.With the special structure designing, the tool stroke can be fine-turning. Auto-feeding and Manual -feeding can be easily and freely chosen. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel.It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.
FEATURES
1,Tool stoke can be fine-turning
2,Beveling angel adjustable: 0-30deg
3,Cold cutting, without influence the material of the pipe
4,Manual feeding and Auto feeding can be easily and freely exchanged
5,Varity of beveling shape: U, Single-V, double-V,J beveling
6,4 model, range for pipe ID: 80mm-820mm
7,Driven motor: Pneumatic and Electric, Servo motor and Hydraulic optional
CAPABILTY
1,Pipe end beveling
2,Inside beveling
3,Pipe facing
4,Compound beveling
BEVELING SHAPE

SPECIFICATION

Model		Working range (ID mm)	thickness (mm)	power (kw)	Rotating speed (rpm)
Electric	Pneumatic
ISY-250-II	TCM-250-II	Ф80-240	≤75	1.4	16
ISY-351-II	TCM-351-II	Ф150-330	≤75	1.4	10
ISY-630-II	TCM-630-II	Ф300-600	≤75	1.4	8
ISY-850-II	TCM-850-II	Ф600-820	≤75	2.0	7

Above parameters just for reference only, not acceptance criteria
POWER SUPPLIES

Electric: Convenient power supply Stable Performance Popular choice Electric requirement:220-230V 1PH 50/60HZ Power:1.43KW,2.0KW

Pneumatic: Explosion Proof Stable Performance Easy to maintenance Air requirement:1500-2000L/min @0.63-0.8Mpa Power:2HP,3HP

Servo motor and hydraulic driven optional for special material and high efficient

TOOLING:
Standard tool: 3PCS straight tool, beveling angle adjusted by tool post other beveling shape, angle and pipe material, please declare before order

Optional tool:

---
