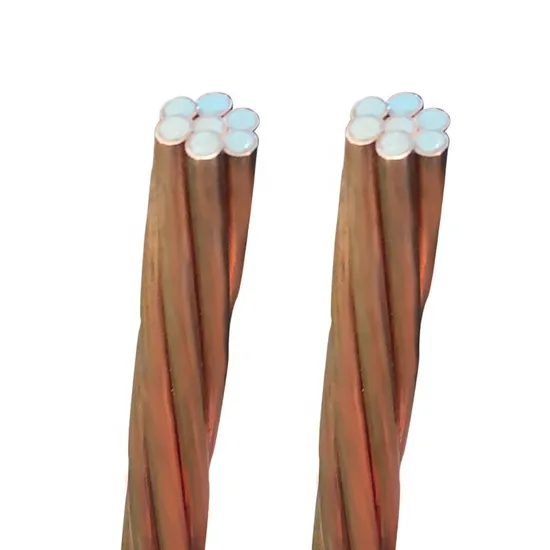

Transmission Lines, Power Lines Copper Clad Stranded Steel Wire Diameter 12.6mm-20mm Made in China

Product Description

Product Description Bare Copper Wires:
Pure copper is formed by upward casting or horizontal continuous casting and rolling after the cathode copper is melted. The copper content is greater than 99.90%, and through further smelting, the purity of copper can reach 99.9999%. Adding a small amount of alloying elements can be melted into special copper alloys (silver copper alloy, magnesium copper alloy, tin copper alloy, nickel copper contract, etc.). Pure copper has good conductivity, thermal conductivity, and weldability, and is widely used in various fields such as aerospace, high-speed rail vehicles, household appliances, mechanical equipment, communication transmission, various cables, electronic devices, and so on.
The copper clad steel round conductor material is based on foreign technology, electroplating electrolytic copper molecules with a content of 99.9% onto a low-carbon steel core, and becoming a new composite material of high molecular combination of copper and steel, which overcomes the traditional process. The galvanic cell reaction produced by the casing method solves the disadvantages of the purity of copper and the thickness of the copper layer in the hot-dip continuous casting process. During the construction process, the electroplated copper clad steel material can be bent freely and cut in length, and the surface copper layer will not peel off and fall off. Therefore, in recent years, electroplated copper clad steel has been widely recognized and praised by customers at home and abroad.

Product name	Copper clad steel round conductor
Material	Mild steel
Copper ingot specification	DHP alloy DHP#122CDA according to ASTM B-572
Copper ingot specification	21%IACS-45%IACS
Standard	ASTM B-228, ASTM B-229
Diameter	12.6mm/14mm/15.8mm/17.5mm/20mm
Application	Transmission lines, power lines
Application	Wooden Drum

Detailed Photos
Packaging & Shipping
Our Advantages
Our cooperative client are all over the world and our products are very popular all over the world. Many products are exported to Russia, USA, Australia, Canada, South Africa, Kenya, Tanzania, Zambia, Brazil and Argentina. Chile, Southeast Asian countries and other international markets. With first-class technical ability and perfect pre-sale and after-sales service guarantee system, we have established a good reputation between enterprises and users
Certifications
FAQ 1. Q: Do you provide sample service?
A: Yes, we only provide samples and ask for one piece at a time. The freight should be borne by you.
2. Q: Do you support customized services?
A: Yes, we can customize the size and logo according to your needs. Please consult the customer service for the specific minimum order quantity.
3. Q: How is the Design & Engineering?
A: Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project. If you require more complex engineering of structures such as overhead transmission and distribution lines design,we can also provide this service also designer fee .
4. Q: What's the payment term?
A: We accept T/T, L/C, West Union.
5. Q: What's the delivery time?
A: Usually within 7-15 days according to quantities
6. Q: What's the standard of package?
A: Export standard package or special package as the requirement of customers.
7. Q: What kind of product quality your factory offer?
A: Our products with both excellent quality and competitive price. And we offer free sample for your reference.
8.Q: What's the standard of package?
A: We usually use wooden pallets or Iron racks for packing, 10, 20, 50 peices/bundle.
8. Q: What kind of certificate you have?
A: We have ISO9001:2008/ ROHS/UL

---
