Air Refresher /Perfume/Deodorants / Insecticide Spray Aerosol Tin Can Making Machine Line (N-F-S-S Four Station Combiner)

Product Description

Customer's needs and satisfaction
is what we are constantly creating and pursuing
As the core of 3 piece can production line, the combiner we make wins overwhelming favor from diverse manufacturers of beverage can, food can and aerosol can with the feature of high efficiency, stability and easy maintenance.

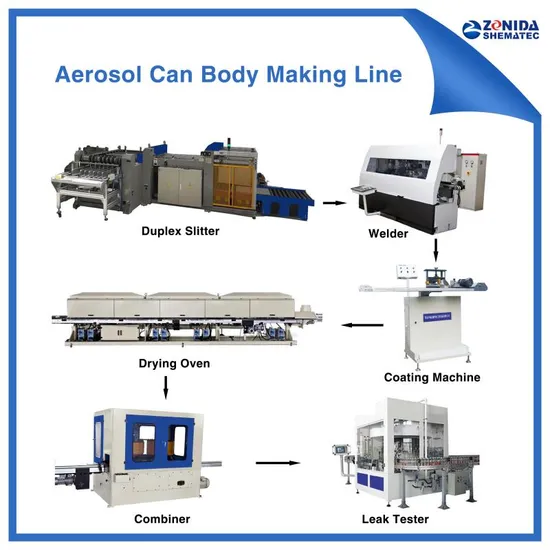

Aerosol Can Production Line
Technical Parameters:
Duplex Slitter:

Max. Cutting Speed	1130mm/s
Tolerance	±0.05mm
Max. Sheet Feeding Speed	40 spm
Max. Sheet Size	1140mm×1140mm
Min. Sheet Size	500mm×700mm
Max. Sheet Thickness	0.4mm
Total Power	6kW
Power Supply	Three Phase Voltage 380V 50HZ
Weight	6000kg
Overall Dimension(L×W×H)	6970×3000×1700mm

Automatic Aerosol Can Making Welder

Max. Welding Speed	85m/min
Max. Output Capacity	800cpm (Depends on Can Height)
Overlap	0.3-0.4mm
Can Diameter	Ф52-Ф153mm
Can Height	H70-320mm
Sheet Thickness	0.16-0.3mm
Welding Frequency	200-1000HZ
Total power	150kW

Lacquering Machine

Capacity	Up to 20m/min
Air Consumption	0.6Mpa, 20L/min
Power	0.5 kW

Induction Drying Oven

Length of Heater	2 Meter
Max. No. of Heater:	12
Heater Coil	Multi-coil
Input Voltage:	220V ±10%
Output Power	15kW
Cooling Water Pressure	0.05-0.25MPa
Induction Distance	5-20mm
Induction Width	35-40mm

Four-Station Combiner

Aerosol Can	Necking-Flanging-Seaming-Seaming
Double Necking Food can	Necking-Necking-Flanging- Seaming
Triple Necking Food Can	Necking-Necking-Necking-Flanging
Output Capacity	650cpm (Depends on Can Size)
No. of Working Head	6 -10
Sheet Thickness	0.16-0.18mm
Temper	T1 - T4, DR8 or DR9

Leak Tester

Testing Object	Aerosol Can
Can Diameter	Ф45-Ф65mm
Can Height	H80-320mm
Testing Mode	High Pressure
Testing Accuracy	2cc/8bar/min
MAX. Speed	320cpm
No. of Working Head	15-36

-Original manufacturer with 24-year professional can making experience.
-Customized Equipments according to customer' requirements, high quality with competitive price.
-Abundant export experience: our products have been exported to Indonesia, Malaysia, Singapore, Mexico, Chile, Canada, Iran, Turkey,Poland, Italy, etc.
-Superior after-sale service: Engineers available to service machinery overseas.

---
