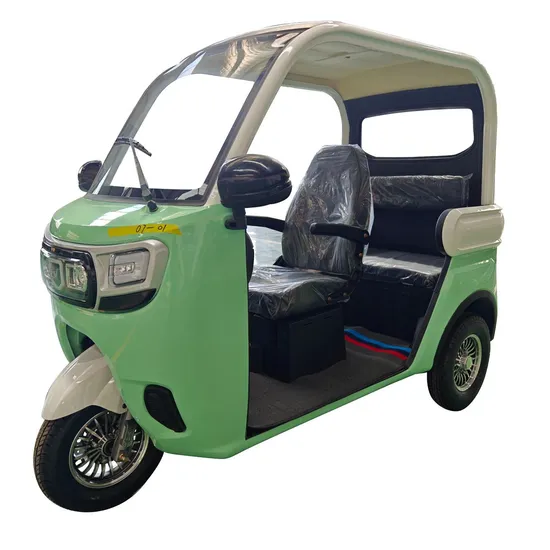

2025 New Electric Three-Wheel Passenger Vehicle Household Pedal Electric Three-Wheel Motorcycle

Product Description

Product Description 60V/1200W permanent magnet synchronous motor, front and rear 4.00-10 aluminum alloy wheels, vacuum tires, front and rear disc brakes, LED headlights, seating 3 people, top speed: 40km/h, cruising range 60-70km.
Detailed Photos

Product Parameters

ITEMS	SPEC.
Product Dimensions(mm):	2260*1070*1620
wheelbase:(mm)	1560
Span of R wheel (mm):	930
Min. Ground clearance (mm):	260
Curb weight:	195kg
Persons capacity:	3
Driving style:	handle
Rear bridge:	Changan integrated belt high and low speed
Generator rated power:	60V/1200W
Controller:	24 tubes
Battery specification/type:	60V58AH Colloidal lead-acid maintenance free
Type of charger:	Intelligent charger220VAutomatic
Charging time:	6-8/h
Transmission type:	Automatic controller
Drive method:	Rear axle drive
F/R suspension:	Three-stage damping shock absorber
F/R brake	Disc hydraulic brake/Disc hydraulic brake
Parking brake type:	Foot brake
F/R wheels and hub	Front 4.00-10/Rear 4.00-10 Vacuum tire
Rim types:	Aluminum alloy rims
Max. Speed(full load):	40km/h
Gradeability(full load):	20-25%
Battery range(full load):	60-70km
OTHER STANDARD EQUIPMENT:	Multimedia integrated instrument, MP5, car audio, car Bluetooth, boneless wiper with reset, car lighting, multi-function fan, USB charging, high-definition reversing image,
Package Size(mm):	2300*1100*1700
Gross weight:	420kg
Container loading qty.:	16 units CBU /40HQ,6 units CBU /20GP,
