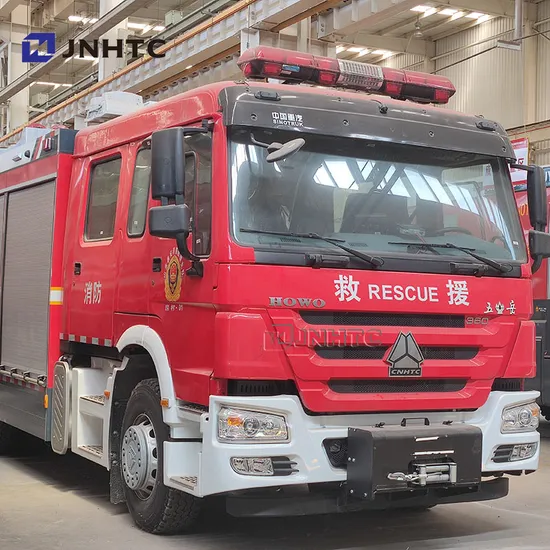

HOWO 18m High Spray Arm 4X2 12000L Large Flow Fire Rescue Fire Truck for Sale

Product Description

Main Specification
Product Name	Howo 4x2 water fire truck 20000liters
Driving Type	4x2, left hand drive
Weights
GVW(kg)	25000
Curb weight(kg)	Approx.12500
Dimensions
Wheelbase(mm)	4600+1350
Overall Dimension(mm)	Approx.10250×2500×3650
Engine
Engine model	360HP
Engine type	4 stroke water-cooled,inter-cooling
No. of cylinders	straight-6 cylinders
Displacement(L)	9.726L
Rated power Rev((Kw/rpm)	273kw
Max Torque(N*m)/Rev(r/min)	1500N.m /1100-1600rpm
Emission standard	Euro II
Drive Line
Transmission	HW19710,10 forwards,2 reverse gear,manual operation
Steering	ZF8118 power steering,hydraulic steering with power assistance
Brake system	Air brake
Cab
Cabin	HW76 Cab
instrument	Active check central controller with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging.
Axle
Front axle	HF7
Rear axle	HC16X2
Tire specification
Tire specification	12.00R20 standard tire,10tires+1 spare tire
Electrical system
Electrical System	Operating voltage:24V,negative grounded Starter:24V.7.5Kw Electrical System Alternator:3-phase,28V,1500W Batteries:2*12V,165Ah/180Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Specification technology
Tanker	Water tank:20000L, material:carbon steel Q235
Fire Pump	CB10/60 (1)pump pressure (Mpa):1.0 flow(L/S):60L/S/1.0MP time of drawing water:<35s
Fire monitor	Model:PS50 Water monitor rated pressure:1.0 MPa Water monitor rated flow :50L/S Water monitor rated reach≥65m Pitching angle :-30~70° Level back to the corner°:360 °

Fire truck Fire trucks, also known as fire trucks, are disaster relief vehicles specifically designed for firefighting or other emergency purposes. Fire trucks can be divided into pump trucks (pumping trucks), ladder trucks, rescue trucks (carrying various rescue equipment), and other specialized and support vehicles according to their functions. Fire trucks are usually stationed inside the fire station and are driven by firefighters to the scene in case of a fire. Fire trucks are designed and manufactured as vehicles with functions such as fire extinguishing, rescue, communication, lighting, smoke exhaust, lifting, and support according to different purposes. Pump truck The most common fire truck. The main equipment on the vehicle is a fire pump (water pump) and various fire sights. When the pump truck arrives at the fire scene, it will be connected to a fire hydrant to provide water for firefighting. Usually, there is also a water tank on the car to store a certain amount of water, so that it can be used temporarily when leaving the water source. It also stores a certain amount of chemical foam and a special foam gun for chemical foam, so that it can quickly put out fires caused by electric oil, batteries, etc. Cloud ladder vehicle The function of a ladder is to reach a high place in a building to save people or put out fires. The highest ladder car can reach a height of about 101 meters, commonly ranging from 30 to 50 meters. Lighting vehicle Provide firefighting vehicles for lighting in disaster relief sites lacking lighting facilities. Some lighting vehicles also serve as vehicles for transporting fire-fighting equipment. Rescue vehicle There are various rescue tools on the car, including axes, electric drills, and hydraulic scissors. Rescue vehicles mainly assist in rescue operations and rescue trapped disaster victims. Command vehicle Command vehicles are usually used in larger fires and other disasters. As a temporary disaster command center for rescue. Airport disaster relief vehicle A fire truck specifically designed for use at airports. The airport fire truck shall arrive at the aircraft accident site in the airport in a short time, and the water and foam loaded on the vehicle shall be used to remotely rescue the aircraft fire with a large amount of fuel. Therefore, the vehicle uses a 4x4, 6x6, or 8x8 multi wheel drive heavy-duty vehicle chassis with certain off-road performance; Paired with a high-power engine, remote-controlled water cannon, water pump, and large volume water cylinder. With the advancement of technology, in addition to the continuous improvement and enhancement of the model, function, and quality of firefighting vehicles, the contribution of firefighting robots in firefighting and emergency rescue is also constantly increasing. Firefighting robots integrate modern intelligence and automation technology, and can replace traditional fire rescue workers to enter the fire scene to solve various problems. Its emergence provides a reasonable guarantee for the safety of firefighters.

---
