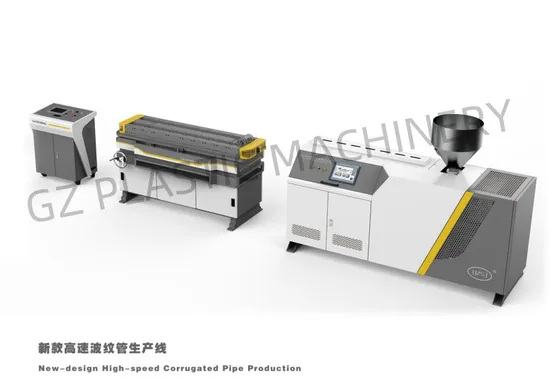

New Design Single Wall PP PE PVC Corrugated Pipe Line

Product Description

Details : Model XGS series High Speed Corrugated Pipe Production Line ( Gear Drive) has adopted PLC control system, which is complete functions easy operation , has linkage functions. When machine power cut off happens in the process of the production , it can effectively protect the safety of equipment and mould. It uses a whole closed track to transfer moulds, stable operation and high production efficiency guarantee the fastest production , the speed can reaching 3 meters per minute. Also this kind of production line can equipped with one mould with double chambers , it's can save a considerable cost for customers.
Main Technical Parameters :

Item No	Motor Power (KW)	Production Speed (m/min)	Mould Perimeter (mm)	Diameter (mm)	Extruder	Total Power (KW)
GS-14-2	1.1	5-25	1978	φ7---φ14	φ45---φ50	25
XGS-55-3	4	5-30	3051	φ10---φ55	φ50---φ65	30
XGS-55-4	4	5-30	4068	φ10---φ55	φ65---φ80	30-50

Notes: The specification are subject to change without prior notice.
Applications : This production line is suitable for such production : auto-mobile wire harness tube , electric wire conduit , drain pipe of washing machine , air-condition tube , telescopic tube , medical breathing tube and other kinds of tubular products etc....
Machinery introduction:
Single wall corrugated pipe has features of high temperature resistance, anti-erosion, anti-abrasion and high strength.
This pipe widely be used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine.
1.High precise temperature control. Configurable alarm strategy.
2.All of the production data can be displayed electrical panel.
3.Very easy operation.
4.Running stability
Advatanges of the single-wall corrugated pipe machine (the machine for corrugated tube):
Plastic single-wall corrugated pipe production line developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of the up-market cars. This production line with good performance and reasonable price,it will be the best choice for your producing single-wall corrugated pipe.
\
Workshop
Packaging & Shipping
Company Profile GAOZHONG PLASTIC MACHINERY Co., ltd was established in 2011, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one. the company mainly produces: plastic corrugated pipe production line, Plastic Wire ( steel wire ) Winding Pipe Production Line , PP/PE/PVC pipe production line,plastic extruder, plastic auxiliary machinery, traction machine, Winding machine, plastic pipe mold and other plastics Machinery.At present,the products are sold all over the country and exported to South Korea ,Jordan,Athelbia,France,Vietnam,Singapore,India,Afghanistan,Egypt and other foreign markets. We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Our service: 1.Ability to provide the customized plastic extrusion solutions;
2.Complete sales system covering the pre-sales, sales and after service jobs;
3.Commissioning & installation service in customer plant 4.We can send you the video of the running machine. You are welcome to come to visit our factory,and see the machine running.
5.We can design the machines according your requirements(material,power,color),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years. FAQ Q: Are you trading company or manufacturer ?A: We are factory. Q: How long is your delivery time?A: Generally it is 20-45 days after receiving the deposit.The special time need discussing the new delivery date . Q: How do you make the quotation for clients?
A:Please offer the following information, so we can give you price and our advice as manufacturer:
1. Type of pipe you want to produce.
2. Pipe diameters.
3. Raw material and its types
If you can send us photos of your samples, it would be highly appreciated. Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us. Questions for Buyers Pls think about the following questions and then send your messeage to my email. And we will offer you our quotation ASAP.
1.The capacity(kgs per hour).
2.The material of this pipe.
3.Please tell me the voltage in your factory CONTACT US:
If you need to know more information about our company or our product ,welcome to contact us and visit our factory!
Our company hope to cooperate with you to create a better future! ! ! GAOZHONG PLASTIC MACHINERY-Lily Chen

---
