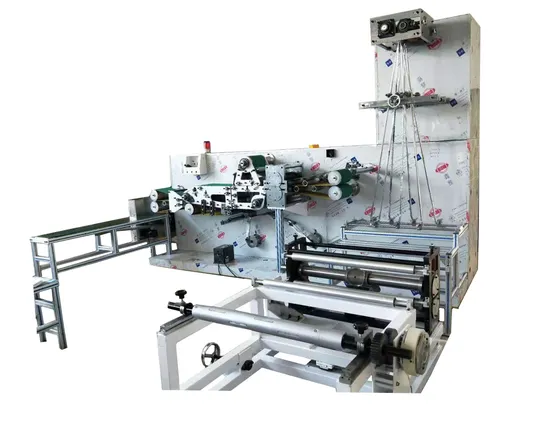

Fenestration Surgical Bed Sheet Making Machine Side Drape Machine

Product Description

Medical bed sheet folding machine

Video https://youtu.be/rPXnfAlqlOo
Specifications:

Model	SAN-BD-800	SAN-BD-1600
Function	Fold medical use non-woven material and disposable bed sheets.
Folding method	Longitudinal fold + horizontal fold 2 times	Longitudinal fold + horizontal fold 3 times
Finished product output method	Conveying belt
Product size	700*800 mm 700*700 mm 600*600 mm 500*500 mm 400*400 mm	1400*2000 mm 800*2000 mm 700*2000 mm 800*1600 mm 800*1400 mm 700*1600 mm 700*1400 mm
Cutting length	350-800mm	900-2500 mm
Length adjusting	Touching panel
Length	Adjustable
Raw material	20-60gms non woven
Material width	<=800mm	<=1600mm
Paper core diameter	76.2 mm
Material diameter	Max 1100 mm
Working speed	80-100 m/min
Power supply	380v,50hz 3 phase 4 wire
Total power	About 8 kw
Machine weight	2300kg
Machine dimension	4*1.1*2.6 m	5.3*1.2*2.8 m
Compressed air	0.6-0.8 Mpa, 1.2m^3/min (provided by the buyer)

Main parts	Features
Machine frame	Frame structure with steel board 14 mm thick. The surface of the machine is stainless steel.
Control system	Main motor frequency conversion control PLC, Touching panel, and independent servo motor control
Conveying system	Conveying belt along the machine running direction
Material loading unit	Independent material loading unit that can be assembled Independent material unwinding unit with 5kg magnetic powder tension control unwinding function High-speed guiding wheel is added to reduce material fraction 1.7m wide position mold is added to fix the product.
Folding unit	Adjustable folding sticks 6 pcs. Position unit 1 set
Cutting unit	It consists of 1 upper knife and 1 bottom knife Additional heating unit is added on the bottom roller to form better.
Folding unit	Half folding unit
Product output	Works to ensure the products are aligned.

After-sales services
♥One year guarantee for the whole machine, all life follow-up service.
♥24 hours technical support by email.
♥Technicians oversea set-up and workers training.
♥User- friendly English for operation system.
Packaging &Delivery
Packaging Details: Stretching film packing
Delivery Detail: Shipped in 60 days after payment
PACKING IS SEAWORTHY AND SAFE.
Exhibition:
F&Q
Q1: What is the warranty for the machine?
A1: For the machine, we offer one year warranty. If any quality problems occurred under normal conditions during this period, we will take on the costs of maintenance and replacement and other related costs.
Q2: How to operate and maintain the machine?A2: First, we will provide a professional and detailed manual to you with the machine; Second, we will test and debug the machine into the best condition before shipment for you. Last but not least, we also provide abroad technical training services and online expertise consulting.
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has over ten-year experience in this industry, we have accumulated various contact information of upstream& downstream firms in fields of raw material, auxiliary material and package for the products. We believe that our professional team can always offer you the best solutions.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with a favorable price if it is out of the warranty.

---
