Welcome to visit

China Good Quality Laser Equipment

US$3,500.00-5,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
DLM-1390
Application
Leather Industry, Domestic, Printing & Packaging, Molds & Dies, Crafts Industr, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Automatic Grade
Automatic
Applicable Material
Nonmetal
Type
Oscillating Mirror
Laser Classification
Gaseous Laser
Engraving Method
Vector Engraving
Laser Power
80W or 100W
Laser Tube
CO2 Glass Laser Tube
Interface
USB
Packing
Plywoob Box

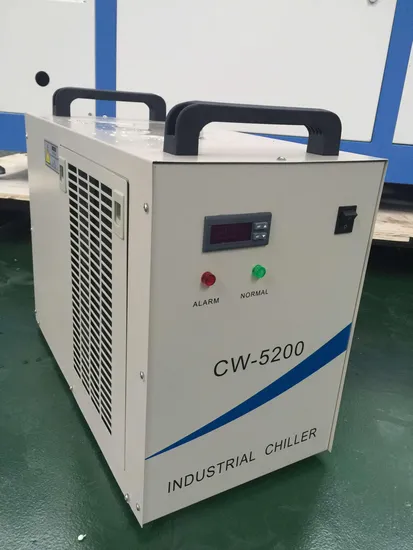

Chiller
Cw5200
Voltage
AV220 /50Hz-60Hz
Gross Power
1000W
Driving Mode
Stepper Motor
Package Dimension
1970mm*1480mm*1150mm
Cutting Speed
1-1000mm/Min
Transport Package
Plywood Box
Specification
working area: 1300mm*900mm (3feet*2feet)
Trademark
DLM
Origin
China
HS Code
8469090
Production Capacity
5000 Sets/Year

Product Description

China Laser Engraving and Cutting Machine Model DLM-1390
Product Description
1300*900mm CO2 Coconut shell laser engraving machine

1.Characteristics:
1) Japanese technical engine running, making sure the products to run at high aped and high precision.
2) The original binding beeline lead rail, the mechanic is running well and stable.
3) Channel feeding, the feeding can be unlimited.
4) The body of the machine adopts high quality aluminum, professional model and has the specification of strong and not easy for distortion.
5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts double face CPU.
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.

HIGH PRECISION ,HIGH SPEED ,COMPACT STRUCTURE AND REASONABLE PRICE!
2.Technical-parameters:
Name: DLM-1390
Processing area 1300mm*900mm (3feet*2feet)
Laser power 80w or 100w or 130W / Reci laser tube
Laser type: Co2 glass laser tube
Dimension: 1970mm*1480mm*1150mm
Engraving speed 1-6000mm/min
Cutting speed 1-1000mm/min
Cutting thickness 0-20mm plexiglas (others determined by materials
Resolution ratio ≤0.0125mm
Interface: USB
Minimum shaping character letter 0.5mm, Chinese 0.5mm
Support graphic format DST, PLT, BMP, DXF
Gross power 1000W
Driving mode: DC0.8A 24V stepper motor
Cooling mode: Circulation water cooling
Working voltage: AC220V/50HZ
Packing: wooden box

Option:
Rotary attachment for column materials
Guarantee time: 1 year, laser tube 6 months
Operation: Video to tell customer how to operate the machine
