5 Layer Blown Film Machine

Product Description

Product Description

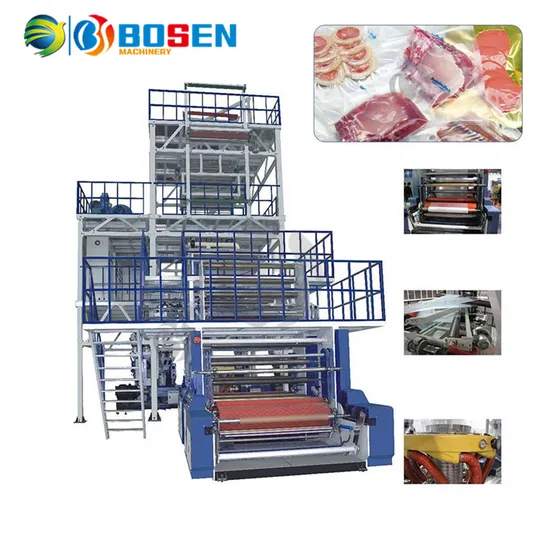

BSJ-3L800 Three ABC Five ABCBA Multi-Layer Film Blowing Machine
Appligable for the materials as LDPE,HDPE,LLDPE,etcJt is widely used to manufacture composite film basic material,liquid film,contractive film,protective film,cable film macromolecule adhesive film,multi-functional industrial film pro- ducs,can better meet operational requirements of hjgh accuracy and high speed color printing,composite and painting products.
Detailed Photos
Product Parameters

Main Technical parameters
Model	BS-3L50	BS-3L55	BS-3L65
Suitable Material	LDPE LLDPE EVA HDPE
Max Film Width(mm)	1200	1500	2000
Film Thickness(mm)	LD:0.015-0.15
Max Extrusion Output LD	140kg/hr	200kg/hr	280kg/hr
Extrusion unit
Gear Box	146/173/146	173/200/173	200×3
Screw Diameter(mm)	φ50/55/50	φ55/65/55	φ65/65/65
Screw L/D Ratio	28:01:00
Screw's Material	38 CRMOALA
Barrel's Material	38 CRMOALA
Barrel's Cooling Fan	370W×2×3	370W×2×3	370×3×3
Thermo Control (zone)	3×3	3×3	4×3
Driving Motor (kw)	15/22/15	22/30/22	30/30/30
Extrusion Die
Die Size (mm)	LD:φ250/300	LD:φ350/400	LD:φ500
Rotary Die Head (mm)	360°Continue Rotary 360°
Screen Changer	Manual Mechanics Screen Changer
Thermo Control (zone)	3	4	4
Air Ring	1 PCS
Cooling Blower (kw)	5.5	7.5	11
Take-UP Unit
Roller Width (mm)	φ165×1300	φ165×1600	φ190×2100
Take-UP Motor (kw)	1.5	1.5	2.2
Take-UP Speed(M/min)	5-60	5-60	5-60
Winding Unit
Type OF Winder	Surface Friction Double Winder
Roller Width (mm)	1300	1600	2100
Winding Motor	16N.M	1.5kw	1.5kw
Winding Speed(M/min)	5-60	5-60	5-60
Voltage	380V, 50HZ, 3PHASE
Cover Dimensions (m)	6.8×2.6×6.5	7.5×3.2×7.5	9×4.2×9

Certifications
Packaging & Shipping
Company Profile
FAQ
1.Guest:Are you a manufacturer or a trade company?
BOSEN: We have our factory for manufacturer and we also trade associated products.We are Wenzhou bosen machinery co. td. We are doing machines since 2000.
2.Cuest: Do you accept speclal design?
BOSEN:Yes, we accept design and manufacture products according to client's special requirements.
3.Guest: What about your packege?
BOSEN:We use film stretch package and contrainer, or you can order with wooden case package.
4.Cuest: How long wil you take before shippng?
BOSEN: It depends on the products that you need,but we guaranteefor shiping as fast as we could. Normally it will take 30 days after we receive the payment.
5.Guest: How can l go to your fectory?
BOSEN: We are in ruiancty Zhejang China. If you want to come,you can take airto Wenzhou air port, Or take train to RuiAn station.

6.Guest: How can l get after-sale service?
BOSEN: One year guarantee time, and 10 years after sale service.

---
