Products Introduction

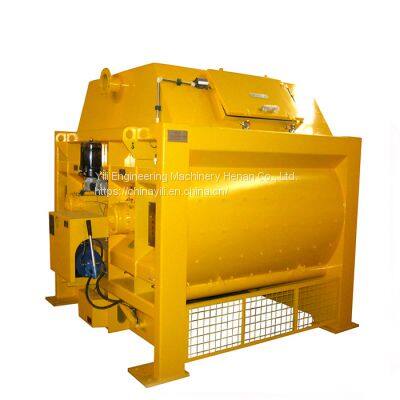

Yili JS series twin shaft concrete mixer is very hot to be used for concrete batching plant. It has a very good mixing effect of the finished concrete with its compulsory mixing feature. Twin shafts also provide a high efficiency mixing, which can save your time.
Yili JS series concrete mixer is very durable, which is made with our high-tech equipment. If you do the maintenance regularly, it can work at least 5 years without any problem, so it becomes the most popular mixer for constructions of road, building, yard, pool, dam, and it is also used for concrete selling factories, enjoying the users’ love.
Three different gearboxes are provided according to the mixer, to provide the most cost-effective solution for you, and these parts are carefully selected by Yili to get the best working performance.
Product Paramenters
| Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 |
| Feeding/Discharging | 800/500L | 1200/750L | 1600/1000L | 2400/1500L | 3200/2000L | 4800/3000L |
| Theo. Mixing Capacity | 25m3/h | 35m3/h | 50m3/h | 75m3/h | 120m3/h | 180m3/h |
| Max. Aggregates Szie | 60mm | 80mm | 80mm | 80mm | 80mm | 100mm |
| Mixing Blades | 6pcs*2 | 7pcs*2 | 8pcs*2 | 9pcs*2 | 9pcs*2 | 10pcs*2 |
| Shaft Rotating Speed | 35r/min | 31r/min | 25.5r/min | 25.5r/min | 23r/min | 24.3r/min |
| Mixing Motor | 18.5kw | 30kw | 18.5kw*2 | 22kw*2 | 45kw*2 | 55kw*2 |
| Winch for Skip Hopper | 5.5kw | 7.5kw | 11kw | 18.5kw | 22kw or belt | / |
| Winch Lifting Speed | 18m/min | 18m/min | 21.9m/min | 23m/min | 26.8m/min | / |
| Water Pump | 0.75kw | 1.1kw | 3kw | 3kw | 4kw | 4kw |
Product Details
Customer Photos
Manufacturing Technique
Delivery & Project
Company Profile
Yili Engineering Machinery Henan Co., Ltd. is a professional factory, specializing in manufacture, design and service for concrete mixing machines such as concrete batching plant, concrete mixer, dry mortar mixing plant, stabilized soil mixing plant, concrete batching machine, concrete truck, cement silo, screw conveyor etc.
We have 20 years experiences and our products are sold to most areas in China and other regions such as South-east Asia, Middle Asia, Middle East, Africa, European and American countries. The high-quality products earn very good praises from our customers.
We believe our products can meet your demands and we welcome friends all of the worlds to visit us!
FAQ
1. Are you the real manufacturer?
Yes, We Yili is a real factory with 20 years history.
2. What is the delivery time?
Depending on the machine size, averagely 10 days.
3. What is the warranty time?
1 years from the day when the goods arrive at your port, or 13 months after departing from China port.
4. Do you provide ODM or OEM?
We can design the plant according to your land layout and print your logo onto the machines.
5. Do you provide installation guide and operation training?
Yes, installation manual will be provided and we can send our engineer to your site.
>>
