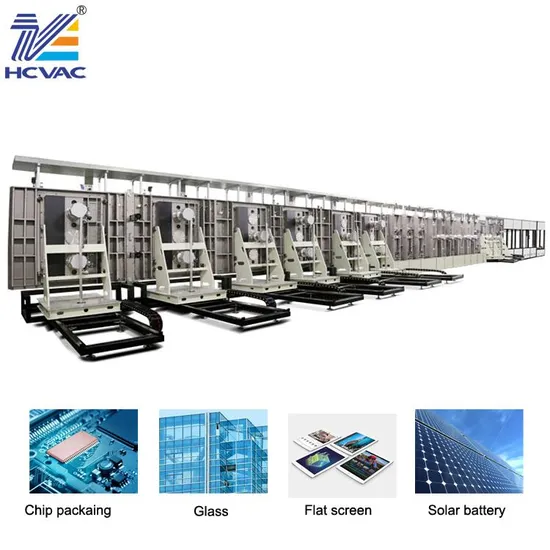

Hcvac Solar Cell Panel Continuous Inline PVD Vacuum Coating Production Line Machine

Product Description

HCVAC Continuous Magnetron Sputtering Coating production line is mainly used in touch screen, acrylic, glass, ceramics, mobile shell, computers, PET, etc.. Coated high-quality, high-performance metal film, electromagnetic shielding film, reaction film, composite film, the transparent conductive film, radiation (AR), the reflection-increasing film, Aluminium glass mirror,color glass mirror,LOW-E film, etc.. The company can provide the design in demand of customer.At present, products and process throughout the country and overseas.

Whether it be architectural glass for facades, large display screens or special coatings, in all these cases large substrates are coated and millions of square meters receive highly complex functional layers which ultimately provide the desired properties. Piece by piece and with the highest precision and repeatability.
HCVAC provides the equipment to master the challenges of large-area coating for the applications mentioned above and many more. Modular design, optimized processes, energy efficiency, high throughput and accurate quality control are just some of the features you can expect from us.
Whatever your large-area application may be, HCVAC has the solution: from giant architectural glass coaters via precision display coating machines to sophisticated laboratory equipment.

Technical data
Substrate: GLASS,Acrylic,PMMA ......
SIZE: 1830x2440m,2440x3660mm,2000MM*2500MM.... or customerize.
Application: LCD Panel,CIGS Thin-film photovoltaics,CdTe thin-film photovoltaics,Organic Photovoltaics,Aluminium mirror,color mirror,single Low-E, double Low-e, reflective glass,Window glass,Construction energy saving glass.
Target:Aluminium,stainless steel,silicon, ITO,SIO,TIO,ZNO,CRO,AZO,GZO,IGZO,METAL Layer and others
Power source: DC,PULSED DC or MF
Magntron type: Planar,single or dual rotatable
Type of transport: INLINE
Orientation of substrate during deposition: horizontal,LEL,SEL
System control: PLC
System dimensions: Min 20m*16.5m*3.5m and customerize
1. Large size chamber and large size glass applicable
2.High efficient cathode manufacturing technology
3. Partical control technology and film uniformity securing technology

Features
* Standardization and modular design concept
*Most advanced five-section gas supply
* High configuration vacuum system, stainless steel route and connnection with high vacuum baffle valve
*Imported motor and timing belt
*Latest cathode layout tecnology
* Industrial Computer Control System+Programmable Login Controller


Application
Applaication:
Whole plant output:
*Monolithic glass touch panel whole plant output
*CIGS whole plant output
*4AR/6AR whole plant output
*Coil to Coil ITO film whole plane output
*Solar engergy whole plant output
*Electricaly induced discoloration whole factory output
Machine Category:

Company Profile
Workshop:
Certifications
Packaging & Shipping
Our Advantages
Why Choose HCVAC System?
· Over 6500 sets/lines installed worldwide
· Quick cycle times
· High production capability with low energy consumption
· More up time due to ease of loading/unloading and low maintenance
· High productivity with only a single operator
· Steel process chambers, built to last
· Eco-friendly
· Space saving design
· PVD option available on all plants
· 1 year component warranty and 25 years minimum guaranteed working life
· Complete global network of consulting, engineering and renowned after sales service

We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.

HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.

We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.

ISO 9001 standard to ensure the quality can meet the customer's requirements.

Contact US

For more information, pls contact with us:

---
