Three Layers ABC/ABA IBC Cooling System with Upper Tration Rotating Plastic Package Shrink PE LDPE HDPE Film Blowing Machine Blown Film Machine

Product Description

Product Description
Product Parameters
Feature:
This machine adopts three extruders to plasticize and squeeze three kinds of same or different materials into the co-extrusion compound head to produce the co-extrusion compound film, which greatly improves the physical properties of the film, increases its strength, and makes the film have good barrier and air tightness.
Optional
1.AUTO LOADER 2. CORONA TREATER
3. AIR COMPRESSOR 4. MANUAL MECHANICAL SCREEN CHANGER
5. DOUBLE WINDER 6. DIE ROTARY DEVICE.
Main Technical Variables:

Model	FE1300
Suitable material	HDPE LDPE LLDPE
Max width of film	1200mm
Gear box	133×3 model
Diameter of screw	Φ50×3
Material of screw	38cromoal
Screw L/D ratio	30:1
Speed of screw	10-80rpm
Thickness of film	0.008-0.12mm
Cooling fan	240w ×6
Material of heating ring	Heating ring
Main motor of extrusion	11kw×3,
Material of extrusion head heating ring	Stainless steel
Model of feed hopper	Auto feed
Mode of Extrusion	Single screw
Color of machine	White, green
Power of Heating	40kw×3
Max output	150kg/h
Supply voltage	380V 50HZ 3PHASE

Electric Control
Famous brand for temperature control, Relay,Inverter etc
EPC device
3 screw with Auto loader, Mold with Rotary die

double roller, auto changer(optional)
auto changer

Co-extrusion Die, with hydraulic screen changer

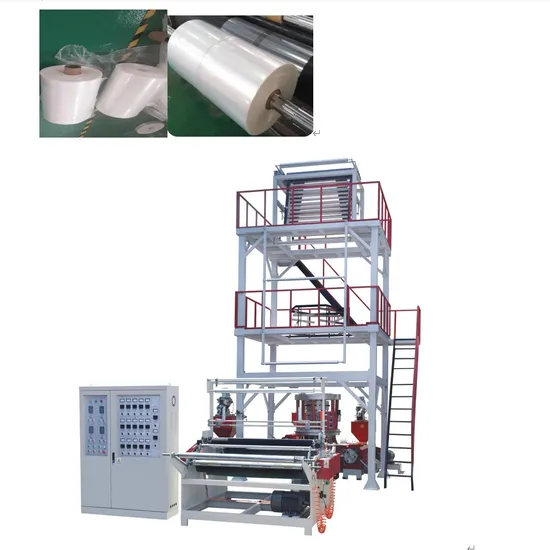

machine photo
Company Profile

Packaging & Shipping

Certifications

FAQ
Q: Are you manufacturer or trading company?
A:We are the manufacturer and have our own workers and factories.
Q:How long is the warranty period?
A: All of our products have 2 year warranty and whole life maintance
Q: What's the main market of your company?
A: We have customers all over the world
Q: What's your delivery time and payment Terms?
A: Normally,it need about 10-30 days.The exact time depends on your quantity.The payment terms always 30% deposits,70% to be paid before shipment.
Q: What package do you use for the product?
A:Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost.
Q: Does your factory provide installation service?
A:Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 120-150USD/Day per person since the day start out until the day arriving at factory.
Q: Can we visit your machine operation in your factory?
A: Welcome to you go to our factory to see the machine operation.
Q: Where's your factory located? How can we visit there?
A: We are in Zhixin industry Zone, Ruian City,Zhejiang province,China.
You can by air to Wenzhou airport and by High-speed train to Rui'an Station
