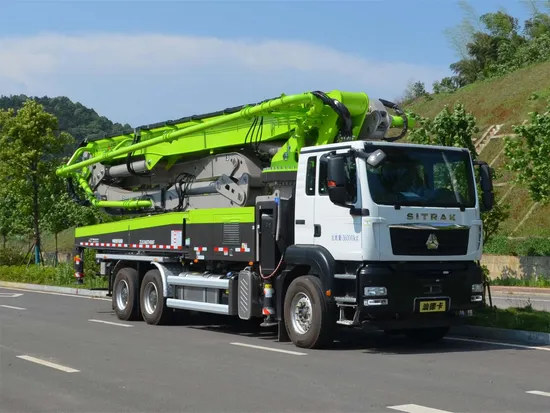

Zlj5360thbkf 52X-6rz Zoomlion 30 38 40 43 47 52m Sitrak Truck Mounted Cement Concrete Pump Truck for Sale

US$9,000.00
1-2 Pieces
US$6,000.00
3+ Pieces

Basic Info.

Model NO.
ZLJ5360THBKF 52X-6RZ
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000
Condition
New
Color
Green
Engine Power
297kw
Engine Displacement
10518ml
Front Track
2110mm
Fuel Type
Diesel
Transport Package
Bulk / Roro
Specification
9112*2496*2980 mm
Trademark
ZOOMLION
Origin
Hunan
HS Code
8705909100
Production Capacity
1

Product Description


Product Description
ZLJ5360THBKF 52X-6RZ Zoomlion 30 38 40 43 47 52m Sitrak Truck Mounted Cement Concrete Pump Truck for Sale
Comply with regulations, wide range of fabrics, and good site adaptability
The axle load of the whole machine complies with the regulations, and there is no need to worry about license plate . registration, highway driving and annual inspection. The maximum fabric depth is more than 2 meters larger than that of its peers, and the fabric range is wide The outriggers occupy the smallest area per meter and are more suitable for construction in narrow sites. The opening height of the big arm is 4.5 meters smaller than that of its counterparts, making it easy to open the arm.

Low operating costs
Valve block-less pumping hydraulic system, the system consumes less energy and is more fuel-efficient Dual fuel tanks with independent functions double the life of hydraulic oil

Reliable chassis and strong battery life
Jiefang/Shantou Ka chassis, domestic first-line brand, reliable performance, Weichai/MAN engine, strong power, high market recognition, aluminum alloy 600L large fuel tank, strong endurance

Detailed Photos

Product Parameters
Model
Unit
52X-6RZ
Pump Unit
Max. Theor. output
m3/h 180
Max. Theor. concrete output Pressure
MPa
9
Rated working pressure
MPa
35
Pumping frequency
min-1
27
Hopper capacity
L
600
Filling height
mm
1540
Hydraulic system type

closed loop
Distribution valve

S valve
Oil cylinder dia.×stroke
mm
φ130×2100
Concrete cylinder dia.×stroke
mm
φ230×2100
Hydraulic oil cooling

Wind cooling
Recommended concrete slump
cm
12~23
Max. aggregate dimension
mm
40
Boom Section
Structure type

52X-6RZ
Placing depth
m
52
Max. horizontal distance
m
48
Max. placing depth
m
37.6
Slewing angle

±270°
Boom number

6
The length of boom section
mm
10410/9120/8690/9680/6600/3500
Sections folding angle

90°/180°/180°/240°/195°/210°
Pipe diameter
mm
125
End hose length
mm
3000
Min. height of opening placing boom
mm
10900
Outriggers span (front×rear×side)
mm
9300×11975×10422
