Button Control Industrial Mixers for Manufacturing Shampoos Shower Gels Soaps Creams Lotions and Other Cosmetics High Shear Emulsifiers

Product Description

Product Description:

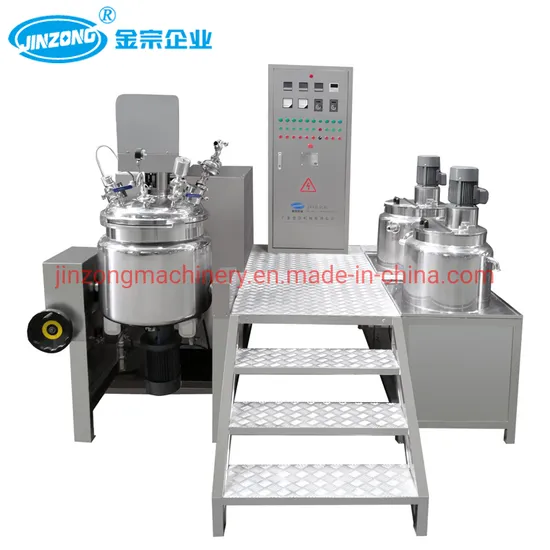

Vacuum homogeneous emulsifying machine (top homogenizer) is an ideal option to produce highgrade skin care products, pharmacy ointment,and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply. It has a very wide application from cosmetics (skin cream, hair gel, lotion etc) and food (jam, chocolate, sauces etc) to pharmacy (ointment, syrup, paste) and chemicals(painting, adhesives, detergents).
Advantages:
Our JRK vacuum homogenizer and emulsifier combines the newest-developed Germany technology and world-advanced unique function, its main components are imported originally from Germany. With new-structure, superior function, it is with fixed high-efficiency homogeneous emulsifier at the bottom-,The complete-obscuration vacuum status with inner recycle system, All these make it very suitable for all kinds the production of cream and skin milk , and Compared to the traditional variety of emulsification equipment ,it has greatly improved the production efficiency and goods quality. Features:1.High efficient emulsifier: it is a high efficient German compound homogeneous emulsifier with six-layer shear teeth of special structure, shearing more times, transient partial pressure up to 100Mpa above .its emulsification effect for materials which goes through the emulsifier is dozens of times than that of common ones.
2.Precision motion mechanism and cooling system: high efficiency, power loss is small, heterogeneous devices can work long time, the application of special process requirements
3.Dead space-free multi-functional flow disturbance stirring system: it may effectively improve the stirring rate and mixing effects;
4.Production of non-dead, out of less material residue: the JRK homogeneous emulsifier type on the same machine, than the other types of emulsion is better;
5.The cover of the main boiler can lift : to ensure that maintenance and cleaning easy;
6.All lifting system uses hydraulic mechanism to ensure the smooth movement, accurate, and security;
7.Manual control, operation and easy maintenance.8.Main boiler has the vacuum pressure of -0.08Mpa, the speed of rake stirrer is 7~60rpm with frequency control. The bottom homogenizer's revolution speed has 1400 and 2800 rpm two gears. It proves to be the perfect device for manufacturing medium&high-grade ointment and honey products.
Technical Parameter:

Model	Volume of main pot(L)	Emulsifying motor		Mixing motor		Oil & water pot capacity(L))	Dimension (mm)	Weight (kg)
		Power (KW)	Speed (rpm)	Power (KW)	Speed (rpm)
JRK-50	75	3	0-3000	0.75	0-74	45/65	2400*2100*1900-2500	1600
JRK-75	100	3	0-3000	1.1	0-74	45/75	2600*2500*2000-2700	1700
JRK-100	130	4	0-3000	1.5	0-74	70/100	2600*2700*2050-2800	1800
JRK-200	260	5.5	0-3000	2.2	0-74	120/190	2900*3000*2400-3350	2300
JRK-300	375	7.5	0-3000	3	0-74	150/260	3000*3200*2600-3600	2500
JRK-500	620	11	0-3000	4	0-63	300/460	3500*3400*2800-4000	3300
JRK-1000	1250	15	0-3000	5.5	0-50	620/900	4100*4100*3600-5100	5000

Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.
Product Show:
Production Process:
Why Choose US:
---Solemn Commitment
1,We have a professional technical team to design the best process and program for you.
2,Insist on updating products regularly.
3,24-hour telephone feedback on the solution, and send someone to handle it online.
---Pre-sale service
Provide detailed information for customers to understand the equipment's performance and scope of application. The equipment plan proposed by the customer can also be customized according to the actual requirements of the customer
---Installation
After the equipment is shipped to the production site, we will provide tutorials or remote guidance for installation and commissioning; we can send engineers to the site to provide services according to the contract.
---Lifetime warranty
Lifelong tracking service, providing the latest technical support in real time. Machine parts and components are available all year round to meet customer's needs and reduce waiting time; for equipment that exceeds the one-year warranty, only the cost of the parts will be charged for the replacement of damaged parts. A diversified online after-sales service platform is provided, Customers can communicate with us via email, phone, whatsapp, WeChat, QQ, etc.
Welcome to Visit Our Factory:
Shipment:
Q&A:
1.Why your machine similar with other supplier?
We are manufacturer and had been in this industry for more than 20 years, with more than 6 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine, service and quality is more important than it.
2.I'm new in our industry, but I'm planning to setup a factory, What can I do?
We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.
3.What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line.
(1)Cream, paste Products:In cosmetic industry: face cream,body cream, washing cream, vaseline etcIn food industry industry: sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc;In chemical industry: welding paste,ink, paint,pigment etc.Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc.(2)Liquid products:Shampoo, lotion, liquid soap, detergent,juice,solution etc;Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc;(3)Make-up products:Lipstick, lip gloss, nail polish, marscara etcMachines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine.4.What equipment can Jinzong manufacture?
(1) Vacuum homogenizer Emulsifying mixer
(2)Liquid washing homogenizing mixer
(3) Water treatment equipment (RO system)
(4)Perfume maker
(5)Anti-corrosion equipment and inkjet printer
(6)Liquid filling and screw-cap sealing machines
(7) storage Tanks
(8) Laboratory equipment
(9)Filter equipment
5.About Guangdong Jinzong Machinery Co., Ltd.
(1)A professional manufacturer producing daily-use chemicals, medicine machinery and pure water machinery equipment since 1999. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services.
(2)Our machines reach the GMP standards and CE certificate requirements. We attend many international trade fairs every year. By far, our products have been exported to over 50 countries all over the world and received much praise from them. Many customers become our long term business partners as well as good friends after the first cooperation.
(3)We create value for customers. We not only provide installation service, but also help customers design and select equipment according to existing sites. After-sales department specifically organizes clients to carry out debugging.
(4)The after-sales hotline is open the whole day and willing to provide consulting service for you. We value the good relationships with customers.

---
