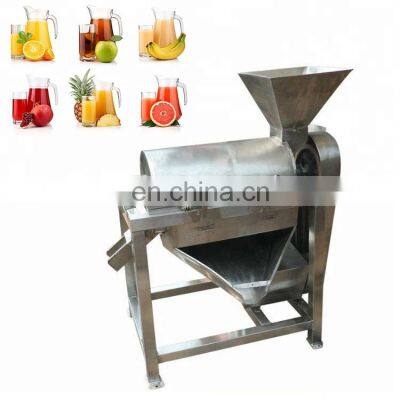

single channel apple fruit puree pulping machine
Contact:
Ms.Elva
Skype: elvamachine
QQ: 2236446951
Cellphone: 008615838061570
For whatspp, viber, wechat
The scope and characteristics
SLtype is applicable to pulp the tomatoes, Chinese gooseberry, strawberries, apples, pears after crushing and soften hawthorn,jujube after pre-cooked.
SLP type not only contain the characteristics of the SL,but also applies to separate all kinds of drupe fruits into nucleolus and pulping .
Characteristics:1.Automatic pulp separation
2.Combination of the production line can also perform stand-alone
3.The material which contact with food is made by high-quality stainless
Working princliple:
SLmodel pulping machine:Through belts’drive,the motor make the scraper rotate on high-speed which installed at the spline.After the broken fruit through the feeder into the machine, the Pulp block disk then put material evenly to the sieve and scraper department. As the function of rotation and lead angle, the material move down to the exit of cylinder,which the trajectory is spiral,and the material was wiped broken. At the centrifugal force between the scraper and the sieve,the juice and frest(have been paste) move to the next procedure through the sieve.(dual-channel,tri-channel for linkage to repeat the above process);the skin and seeds expel from slag hopper to achieve the process of separation and pulping.If you want to change the speed of pulping,only need to adjust the sieve of different specification and scrape lead angle.
Technical Parameters :
Model
| SLP0.12-1
| SLP1-2.5
| SLP3-5
|
Capacity (t/h)
| 0.12-1
| 1-2.5
| 3-5
|
Power (kw)
| 1.5
| 4.0
| 7.5
|
Rotation speed (r/min)
| 860
| 860
| 860
|
Weight (kg)
| 100
| 250
| 500
|
Overall dimension (mm)
| 1000*830*948
| 1450*770*1530
| 1900*850*1700
|
Product show
