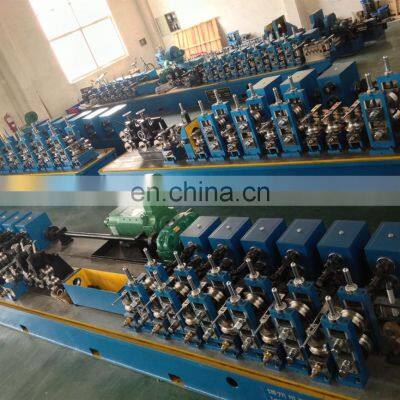

High Frequency Steel Straight Seam Pipe Welding Line / Tube Mill

Product Description

Product Description
Product Description
High frequency straight seam tube mill is intended for manufacturing of high frequency straight seam welding tube , square tube and special shapes tube. The production line adopts advanced pass technology, PLC automatic control system, with stable operation, convenient operation and repair, and reached the advanced level in the same industry in the structure and accuracy. Including equipments from decoiler to run out table, the speed adjusts according to the tube specification changing.
Suitable Size
High-precision High Frequency Straight Seam Tube Mill

Machine	Measurements	Thickness	Speed	Main Motor Power	Solid State HF Welder Power
HF16G	O.D.:Φ8~Φ25 Square tube:10*10~20*20	round tube: 0.3~1.0mm square tube:0.3~0.8mm	30~100 m/min	30kw	100kw
HF25G	O.D.:Φ8~Φ32 Square tube:10*10~25*25	round tube: 0.4~1.2mm square tube:0.4~1.0mm	30~100 m/min	37kw	100kw
HF28G	O.D.:Φ12~Φ50.8 Square tube:10*10~40*40	round tube: 0.5~1.8mm square tube:0.5~1.3mm	30~100 m/min	90kw	100kw
HF32G	O.D.:Φ13~Φ50.8 Square tube:12*12~ 40*40	round tube: 0.6~2.0mm square tube:0.6~1.5mm	30~80 m/min	110kw	150kw
HF50G	O.D.:Φ19~Φ76 Square tube:15*15~ 60*60	round tube: 0.7~2.5mm square tube:0.7~2.0mm	30~80 m/min	160kw	200kw
HF60G	O.D.:Φ25~Φ80 Square tube:20*20~ 60*60	round tube: 0.9~3.0mm square tube:0.9~2.5mm	30~70 m/min	160kw	200kw
HF76G	O.D.:Φ32~Φ80 Square tube:25*25~ 60*60	round tube: 1.2~4.0mm square tube:1.2~3.0mm	30~60 m/min	110kw*2	300kw
HF127G	O.D.:Φ38~Φ127 Square tube:30*30~ 100*100	round tube: 1.2~4.0mm square tube:1.2~3.5mm	30~60 m/min	132kw*2	300kw
HF165G	O.D.:Φ76~Φ165 Square tube:40*40~ 130*130	round tube: 2.0~5.0mm square tube:2.0~4.0mm	30~60 m/min	160kw*2	400kw
