Bioprocessing Vessel/Advanced Fermentation Tank/Fermentation Vessel

Product Description

Meets The GMP Production Standard Bioreactor for Pharmaceutical & Medical Industrial

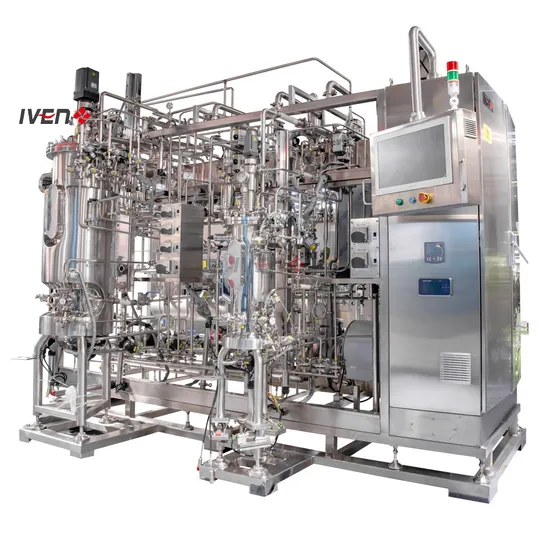

This machine is a small fermentation system consisting of a 15L seed tank and 100L fermentation tank, all the instrumentation as well as the automation system. This machine is specially designed for microbial fermentation or cell culture equipment. The main components of the system include the fermentation tanks, temperature control system, pH control system, stirring system, gas distribution system and cleaning and sterilization system.
Functions and Parameters
1.High polish degree, inner wall EP electrolytic polishing Ra ≤ 0.2um, outer surface matte brushed polishing Ra ≤ 0.4um, much higher than the industry standard requirements and other counterparts.
2. The machine can achieve one-button fully automatic sterilization.
3.The coverage rate of the jacket is 75%, with a full jacket form and optimized internal flow guiding structure.
4.For systems with multiple tanks, single tank single control (1 tank using 1 set of control system) and multi tank joint control (multiple tanks using 1 set of control system) can be achieved. Although multi tank joint control uses 1 control system, multi-tank joint control can still realize independent control of different tanks respectively.
5.This machine has various over-limit alarm functions: you can set the upper and lower limits of different parameters, once the limit is exceeded, the system will automatically alarm.
6.For systems with multiple tanks, single tank single control (1 tank using 1 set of control system) and multi tank joint control (multiple tanks using 1 set of control system) can be achieved. Although multi tank joint control uses 1 control system, multi-tank joint control can still realize independent control of different tanks respectively.
7.This machine has various over-limit alarm functions: you can set the upper and lower limits of different parameters, once the limit is exceeded, the system will automatically alarm.

item	value
Type	Fermentation Extraction
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2021
Warranty of core components	1 Year
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Place of Origin	China
Weight	2500
Warranty	1 Year
Key Selling Points	Long Service Life
Applicable Industries	Manufacturing Plant, Medical, Pharmaceuticals
Showroom Location	Egypt, Turkey, United Kingdom, Brazil, Russia, Algeria, South Africa, Nigeria, Uzbekistan, Tajikistan
Product name	Meets the GMP Production Standard bioreactor industrial
Mixing speed	fermenter special motor
PH control	Intelligent PID control
Material	304; 304L
Tank automatic sterilization system	automatic program sterilization
Tank automatic cleaning system	tank automatic cleaning system
Foam control	peristaltic pump refoaming agent, automatic control;
Tank pressure	Automatic adjustment, digital display
After-sales Service Provided	Online support;Field maintenance and repair service

* IVEN provides biopharmaceutical customers with a full range of microbial culture fermentation tanks from laboratory research and development, pilot trials to industrial production, and provides customized engineering solutions. The design and manufacture of fermentation tanks strictly follow GMP regulations and ASME-BPE requirements, and adopt professional, user-friendly and modular design, and can provide containers that meet different national pressure vessel standards such as ASME-U, GB150, and PED. The volume of the tank we can provide ranges from 5 liters to 30 kiloliters, which can meet the needs of high aerobic bacteria such as Escherichia coli and Pichia pastoris. This product is suitable for the batch cultivation of microorganisms in the pilot and production scale of biological drugs such as recombinant protein drugs (such as insulin) and vaccines (such as HPV, pneumococcal vaccine).
