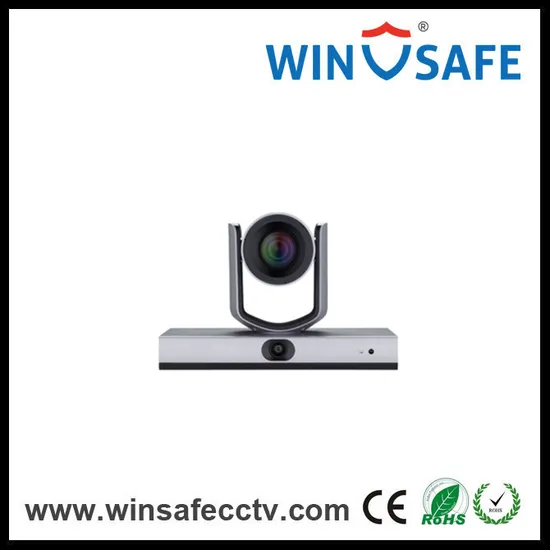

AMC-G200TH speaker tracking camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technology, it can automatically switch between close-up image to frame speakers and full view image to frame the whole room, it frees of camera operation during a meeting and enables meeting attendees to focus more on discussion.
Implemented with both audio positioning, body detection and recognition technologies, it can precisely frame the speakers, support AEC
Automatically switch between close-up image for speaker(s) and wide-angle image for all attendees
| Model No. | AMC-G200TH |
| Image Sensor | 1/2.8" Exmor CMOS, 2 MP |
| Video Standard(HD) | 1080p60,1080p50,1080p/30,1080p/25,1080i/60,1080i50,720p/60,720p/50 |
| Focal | f = 3.9mm - 46.8mm |
| IRIS | F1.6 - F2.8 |
| Zoom | Optical: 12X, Digital: 12X |
| Field of View | 72.5° - 6.3° |
| Focus | Auto, Manual, PTZ Trigger AF, One push |
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) |
| Shutter Speed | 1/25 - 1/10,000s |
| AGC | Auto/Manual |
| White Balance | Auto, Indoor, Outdoor, One push,Manual, Auto Track |
| AE Control | Auto, Manual, Shutter Priority, Iris Priority |
| S/N Ratio | Above 50dB |
| DNR | 2D/3D |
| BLC | Support |
| Full-View Camera |
| Image Sensor | 1/2.5" 4K CMOS, 8.57MP, 2.8mm |
| Lens | Prime lens, 4X Digital Zoom |
| Field of View | 98° |
| Video Adjustments | Support EPTZ |
| PTZ |
| Pan/Tilt Range | -90° - +90°; -30° - +90° |
| Preset Number | 64 |
| Network |
| Max,Image Size | 1920x1080 @ 60fps |
| Video Compression | H.265,H.264 |
| Audio Compression | AAC |
| Protocol | HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF |
| Steam | Support 1 Tracking, 1 Full-view, 1 Switching, three steams in total |
| Interface |
Video Output
Audio Input | 1 x HDMI interface, 1 x 3G-SDI Interface, 2 x LINE IN, including one channel with EC |
| Audio Output | 1 x Line out |
| Network Interface | 1 x 10M/100M |
| USB Interface | 1 x USB2.0, Support UVC/UAC |
| Control Interface | 1 x RS-232 |
| General |
| Control Protocol | VISCA |
| Address | 1 - 6 |
| Power Supply | DC12V |
| Power Consumption | Below 20W |
| Working Temp | 0°C - +40°C |
| Storage Temp | -20°C - +60°C |
| Dimension | 245mm x 145mm x 165mm |
| Weight | Below 2kg |
