Product Details
Product Description
Product Description
Product Description

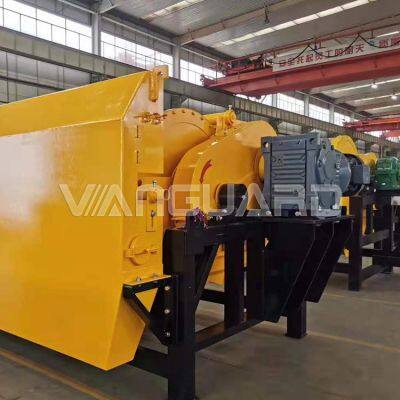

Wet magnetic separator is widely used in mineral processing, coal washing and chemical industry. It is used for wet separation of strong magnetic minerals with particle size less than 3 mm. The minerals are divided into magnetic and non-magnetic products.
Performance Characteristics:
1. Large air suction volume, low power consumption.
2.Each cell with air suction, slurrysuction, flotation separation and flotation separation is easy to form flotation circle without any other accessory equipment, which is flexible to change process flow.
3. Backward type Impeller with upper and lower leaves, the upper blade generates upper circulation the lower blade generates lower
circulation.
4. Mechanical stirring, self- air suction, self-slurry suction.
5. Optimistic structure design & Excellent performance
WORKING PRINCIPLE
The flotation cell adopts creative forward tank, double side blades of water wheels, draft tube and the false bottom device.When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. Enough air is sucked to mix slurry, and he mixed mineral slurry is mingled with additive at the same time. Mineral sticks on the bubble completely and floats on the surface of slurry to form mineralized bubbles.The useful bubble is scraped out by adjusting flashboard height and controlling the liquid surface.
PRODUCT PARAMETERS
Model
| Cylinder
D x L(mm))
| Cylinder
speed
(r/min)
| Feeding size(mm)
| Working gap(mm)
| Capacity of
Dry ore(t/h)
| Capacity
of Slurry
powder
(m³/h)
| Power(kw)
| Weight(kg)
| Overall
dimension
(mm)
|
CTB612
| 600×1200
| 35
| 0-0.4
| 30-40
| 10-15
| 10-15
| 2.2
| 1200
| 2550x1300x1250
|
CTB618
| 600×1800
| 35
| 0-0.4
| 30-40
| 15-20
| 15-20
| 2.2
| 1500
| 3150x1300x1250
|
CTB712
| 750×1200
| 35
| 0-0.5
| 30-40
| 15-20
| 15-20
| 2.2
| 1830
| 2770x1780x1600
|
CTB718
| 750×1800
| 35
| 0-0.5
| 30-40
| 30-35
| 30-35
| 3
| 2045
| 3350x1780x1600
|
CTB918
| 900×1800
| 20
| 0-0.8
| 45-75
| 30-35
| 100-150
| 4
| 3500
| 3426x1886x1606
|
CTB924
| 900×2400
| 20
| 0-0.8
| 45-75
| 40-60
| 120-180
| 4
| 4000
| 3926x1886x1606
|
CTB1018
| 1050×1800
| 20
| 0-0.8
| 45-75
| 50-100
| 170-200
| 4
| 4095
| 3440x2220x1830
|
CTB1024
| 1050×2400
| 20
| 0-0.8
| 45-75
| 70-130
| 200-300
| 5.5
| 5071
| 4032x2220x1830
|
CUSTOMER CASES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers aggregates crushing, industrial grinding, mineral processing, EPC general contract project, etc. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular manufacturer in global mining industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification, European CE certification, Russian gost certification and other product quality system certification, ensuring that all the equipment is brand new, advanced and reliable.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：If I need the complete processing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many
mining projects in China & Overseas.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
>>
