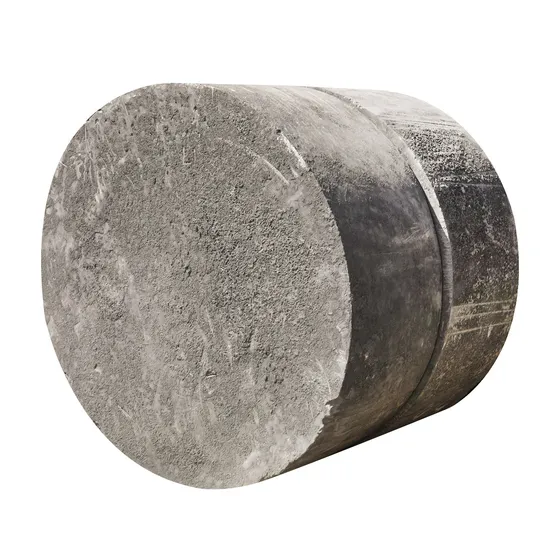

Graphite Round, Density 1.75g/cm3, Grain Size 0.8mm

Product Description

ABOUT US
GES Graphite Inc. established in 1958 in USA ,with a family that has been in graphite business for over 60years, GES Graphite has established itself as a reliable supplier of quality products. Now the third generation of managers went on to create miracles in the graphite industry and set up another new brand GES-AGM after purchased GrafTech facility in 2018.
GES Asia-Pacific Co.,Limited , as a branch of GES Graphite Group from China, together with GES global partners has gained extensive experience and great achievement in graphite field.
GES Asia-Pacific Co., Limited specializes in supplying graphite and carbon products. Our experienced staff can help you match your requirements with the right product, from graphite electrodes & carbon electrodes, specialty graphite, gouging rods, and your other graphite needs.
GES Asia-Pacific prides itself on excellent customer service so it can build solid long lasting relationships with the customer.
We guarantee our vibrated graphite rounds and blocks are the highest quality available. Exceptionally consistent and easy to machine, our vibrated graphite grades have a homogenous quality comparable to products found from the world's leading producers.
Products Introduction
Grain Size: medium- grain size, 0.8mm, 2mm,
Grade: GSY
Product Size:
ø810x600mm
ø910x600mm
ø1000x600mm
ø1120x580mm
ø1220x580mm
ø1270x580mm
ø1400x580mm
ø1550x580mm
ø1800x500mm
Forming method: Vibrated forming

Properties	Bulk Density	Particle Size	Electrical Resistivity	Flexural Strength	Compressive Strength
Grade	g/cc	inches / mm	Ω-inch / µΩm	psi / MPa	psi / MPa
GSK	1.72	0.031 / 0.8	3.1 / 8.0	2,300 / 16	5,100 / 35
GSY	1.72	0.031 / 0.8	3.1 / 8.0	2,750 / 19	5,650 / 39

Features: Good resistance Suitable resistivity Homogenous structure Industries: Solar Foundry Chemical Electronics Ferrous metals High-temp processing Ceramics Refractory Specific Applications: Crucibles Casting Molds Resistance Heating Elements Channels Parts for Heat Exchangers Susceptors for Induction Furnaces Furnace Linings Head Electrodes for Acheson Furnace Anodes for Metals Electrolysis Boats and Trays for Sintering Heat Shields and Covers for Pulling of Monocrystalline Silicon

---
