Three Phase Olive Oil Virgin Coconut Oil Water Tubular Separator Centrifuge

Product Description

Three Phase Olive Oil Virgin Coconut Oil Water Tubular Separator Centrifuge
Product Description
Tubular centrifuges have GF, GQ two series, the typical such as GQ series clarify type tubular centrifuges, GF series liquid and liquid separation type tubular centrifuges.

It is high speed separator. It has better separation. Strong in separation, simple in structure, convenient in operation and maintenance, low in consuming power, small in ground, high in speed ,strong in separation factor, small in noise, adaptive in material with high or low temperature.
GQ type Swing type GF type
Main Features
Strong separation ability / Simple structure / Easy to operate and maintain / Small footprint
Tubular centrifuges have the advantages of high purity liquid phase and low moisture content solid phase, continuous operation, automatic control, safe and reliable operation, saving manpower and small footprint, reducing labor intensity and improving working conditions, etc.
Working Principle
The tubular centrifuge is consisted of main body, driving device, bowl,collecting pan and liquid-in bearing seats. The upper of the bowl is flexible mainshaft and the lower of it is damp floating. The mainshaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an overspeed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.
Product Parameters

* We can also help to select a suitable model for your according to your raw material information and capacity requirement!

Application
GQ Type is used for separating various suspension liquid, which is difficult to be separated, especially the separation of solid-liquid suspension, which is low concentration, high viscidity, fine solid phase granule, and very small difference in solid-liquid gravity, such as clarification of various liquid. Extract of paint, dye, as well as various protein, algae, pectin, and purification of rubber solution, etc.
GF Type is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micro-powder, extract liquid from plants, the typical such as coconut oil separation, separation of plasma and red blood cell, etc.

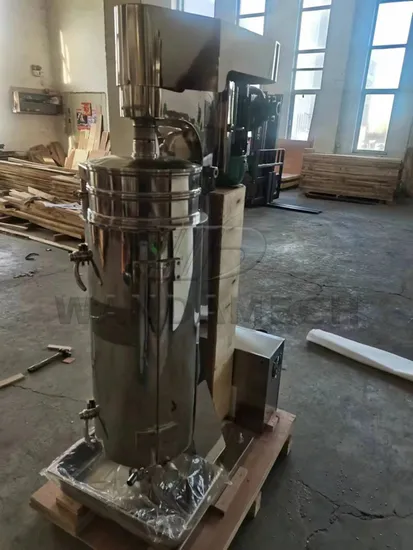

Detailed Photos
Company Profile
LIAOYANG WANDA MACHINERY CO.,LTD specializes in R&D, manufacturing, operation, export and related services of various types of industrial centrifuge machines, drying equipment, mixer machines, crushers, granulation machines, packing machines etc. The production base is located in Liaoyang City, Liaoning Province, China. Our mechanical equipment products can be widely used in food, chemical, petrochemical, light industry, heavy industry, printing and dyeing industry, feed industry, fertilizer industry,high-tech industry, etc., has been widely welcomed and praised.
Wanda Machinery not only has a group of capable engineers and senior management personnel with more than ten years of work experience, but also has a group of excellent production personnel. They have excellent capabilities in research, design, service, etc. Over the years, they have devoted themselves to researching and summing up in practice. "Pragmatism, innovation, integrity, pursuit of excellence", a deep understanding is a strong guarantee for the quality of customers' products!
Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The excellent quality machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer's cost.
FAQ
1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Solid content percentage
2. What certificates do you have?
We can provide CE, ISO 9001, etc
3. What is the warranty period of the equipment?
Normally 1 year warranty
4. Can we visit your factory?
Sure, we sincerely invite you to visit
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
Sure, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.

---
