Heavy-Duty a Frame Glass Storage Trolley

Product Description

Glass A Frame Rack

Specification:

A-frame Glass Trolley
Length*Height*Width (mm)	Max Glass Size Min Glass Size (mm)	Working Loading	Self-weight (kgs)
1908*1600*900	2500*2000 600*100	2T (with 2T loading wheels)	240
1908*1600*900	2500*2000 600*100	5T (with 5T loading wheels)	240
Note: Customized size and design are available.

Features:
1. Light and compact, convenient to use
2. Storage and transportation all in one
3. High-quality rubber pads with built-in steel plates
4. Customized size and design are available
5. Sold and used in one
6. Racks can be stacked up when shipping to save freight cost
7. Square steel tubing: 60*60*3mm
8. Electrostatic spraying for long-lasting surface
9. Step 220mm each side
10. Two universal wheels and two with brakes design
Appliaction:

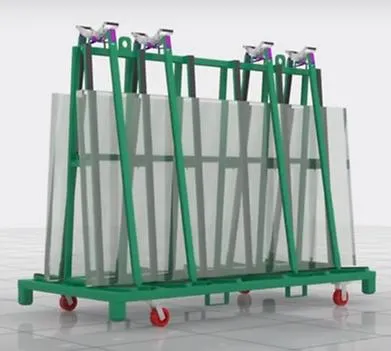

The A Frame Glass Storage Rack is a specially designed A-frame rack for storing and transporting glass sheets. It consists of a base, triangular supports, top beams, middle beams, and restraining bars, all constructed from high-quality carbon structural steel tubing and channel steel, ensuring a stable structure with a high load-bearing capacity. The bolted connection allows for disassembly when not in use, facilitating convenient transportation and storage
