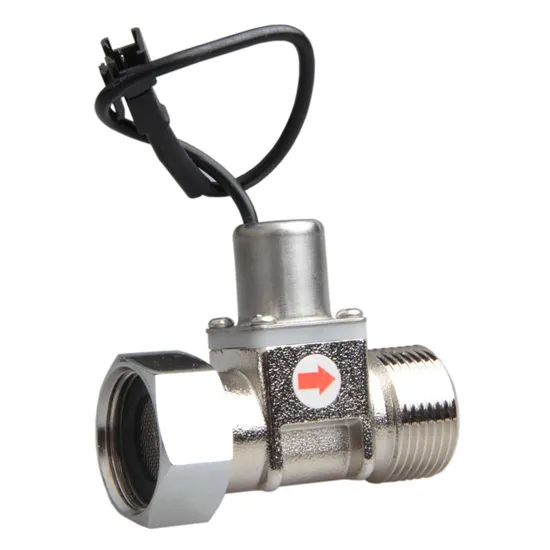

Xhnotion 2MP-20 Brass Arduino Latching Bi-Stable 3V-12VDC Water 3/4 Solenoid Valve

Product Description

Xhnotion 2MP series brass battery arduino latching bi-stable 3v-12vdc water 3/4 solenoid valve
Feature
1. No self heating
2. Continues to hold even after the power is disconnected
3. Can operate by a pulse signal.
4. A charge / discharge of capacitor will be enough to set and reset
Specification

Product Name	Bi-Stable Valve / Pulse Valve / Latching Valve
Rated Voltage	4.5V-12V DC
Pipe Thread	G3/4"
Coil Resistance	17Ω±1Ω (20 ºC )
Function	Pilot Operated
Impulse Width	25ms
Working Pressure	0.02Mpa-0.8Mpa
Medium Temperature	0-60ºC
Reacting Time	Open≤0.15s Close≤0.5s
Electric Strength	Between conductor and nonconductor,shall be no puncture and spark in one minute under the condition of AC 1000V voltage
Insulation Capability	Over 100M between conductor and nonconductor
Flow Capability	0.05mpa≥5L/min, 0.3mpa≥20L/min, 0.8mpa≥28L/min
Working Life	More than 500,000cycles

Process
Advantage
1.Raw Material conforms to China industry standard, bought from famous factory.
2. Insulation grade: H class, good resistance to high temperature.
3. Machined by CNC to make sure the tolerance as the drawing
4. 100% leakage testing under low pressure and high pressure.
5. All kinds of valve and seals material to meet custom requirement.
6. 1 year quality assurance after shipment.
7. After sales technique support.
Certificate
Packing and Shipping
Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packagwe are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Express: TNT, DHL, UPS, FedEX, SF Express
Delivery time: 3 days to 30 days depends on actual orders.
Our Company XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)
In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.
This success of the company XHnotion Pneumatic is based on:
High class quality standard
Customer satisfaction
Fair price policy
Flexibility
The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market. XHnotion Pneumatic manufactures below products:
Pneumatic Components: air cylinder, solenoid valve, FRL
Solenoid Calve: standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve
Pneumatic Fittings: plastic pneumatic fittings, mental pneumatic fittings, pneumatic muffler, water push in fittings
Air Gun & Couplers: pneumatic couplers, air guns, air tool kits
Air Hoses: air tubing, PTFE tubes, tube cutter, pipes
Why Choose US ?
1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.
FAQ
Payment Terms:
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy:
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.

---
