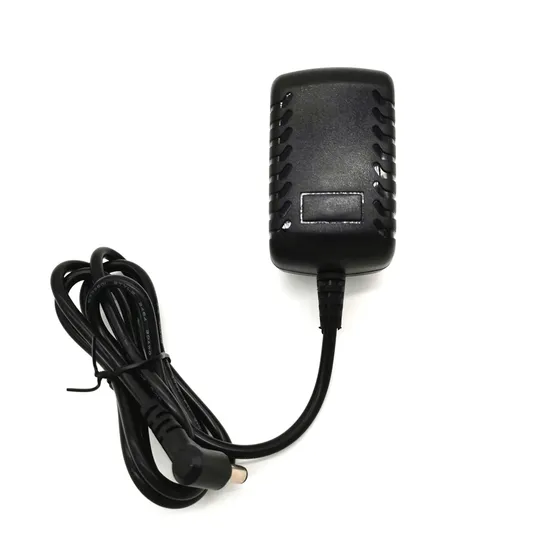

Black or White OEM, ODM New-Style 12V 1A DC Power Adapter

Product Description

Model NO.	DCSP120100	Ripple Wave	1%
Input	100-240VAC 50/60 Hz	Insulation	3KV/5mA
Output	12VDC 1.0A	Approval	UL CUL GS CE CCC UKCA PSE KC CB ROHS
Protection	OTP OVP OCP STP	DC Cable	1.2m/1.5m/1.8m(Customized Available)
Voltage Tolerance	±5%	Warranty	3 Years

Input Voltage:100 to 240 VAC 50/60 HzProtection:Internal Primary Current Fuse,Inrush LimitingConfiguration:Horizontal case Output
Load: 12VDC±5% Ripple:1-2% Vp-p Max. For Output Voltage@ Full LoadTransient Response:0.5mS for 50% Load Change TypicalHold-up Time:10mS @Full LoadProtection:Short Circuit Protection,Over Voltage Protection,Over Current Protection
DC Plug According to Customer RequirementsDC Cord: Flat or RoundFerrite Core:Optional Safety Approvals UL, cUL Electrical Topology: Swicthing FlybackDielectric Withstand: 3000VAC Primary - SecondaryLeakage Current:0.25mAEfficiency: CoC ErP CertifiedMTBF: 100,000 Calculated Hours at 25ºC,by Telcordia SR-332 Environmental Operating Temperature: 0 to +40ºCStorage Temperature:-20 to +80ºCRelative Humidity:Operating:20 to 80% RH,Storage:10 to 90% RHCooling:Natural Convection Cooling
Ningbo Freeman Technology Co.,Ltd was a group that located in Ningbo City which own that largest Ningbo port all over the world,also close to Shanghai port. Shanghai international airport and Hangzhou internation airport. The transport is very convenient to visit and ship goods to anywhere in the world. We are a one stop power solution supplier that specialized in switching power supply, pure sine wave incerter,control PCB board,isolated power transformer, photoelectric encoder,wireless bridge and etc. Our products are widly used in communication, medical device,electronics,LED lighting,audio,new energy,instrumentation,home appliance,servo system,wireless communication and etc. We have UL, CE,GS UKCA,KC,FCC INMETRO and other certificates for our products, Our professional QC&QA team can guarantee carry out ISO9001:2015 quanlity control system.
FAQQ1: What are the advantages of our company? A:Each product within compete safety certificates, a strong R&D team, the independent R&D and production of the main parts, and the produc quantity controlled from the source.Q2: Can you provide OEM and ODM services.A: Yes.Q3: What kind of certificates have you obtained for your products?A:All the power inverters have obtained CE,KC,CB,RoHS and etc certification,which can meet the import requirements of most countries.Q4: How do you transport the goods?A:Express, air shipment,sea shipment.Q5:How long can you offer the samples?A:1~7days.

---
