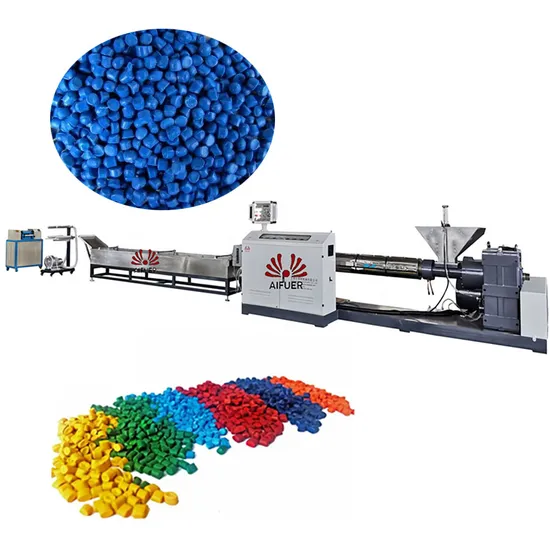

PE PP 120 Screw Equipment Plastic Granulator Machine

Product Description

PP PE recycling and pelletizing machine gathers so many functions of crushing, compacting, plasticization and pelletizing to a whole system. We have adopted advanced European technology recently that makes sure quality and long usage time. This plastic pelletizing machine can used for granulating many kind of raw material such as plastics films, woven bags and foaming materials re-pelletizing. Final productions are in the form of pellets/granules, which can directly put into the production line for blowing moulding machine, plastics injection machine, etc

No			Specification and Instruction
1			SJ-120/28 single screw extruder
			Screw dia: 120mm L/D: 28:1 Screw max. Rotation speed: 90 rpm Heating power: 1.2* 4kw Heating ring: Stainless steel cover Heating method: Ceramic heater Max. Heating degree:500°C Main motor power:55KW motor
			Connection method for motor and reducer: Straight connection Electrical control part Contactor:Siemens Control cabinet: Equipped with air cooling blower,air exhaust system Cabinet shape: Rectangular Cabinet material : aluminium alloy Center height:960mm
2			Hydraulic screen changer
			Plate type hydraulic screen changer for No stopping, no leaking, Changing screen time≤2 sec. diameter of screen: φ200 Motor power: 2.2KW
3			Vertical Water-ring die face hot cutting system
			Instruction: Vertical Water-ring die face hot cutter system Motor power: 1.5kW Speed controlling by frequency conversion Containing:hot cutting die head,diffluence strick, water-ring cover,knife rest, Cutter head,toolbar, etc.
4			Water Chute
			Stainless steel water chute equipped.
5			Centrifugal dewatering
			Material:Bracket jointing by Q235, the others are stainless steel Motor power: 3KW Rotate speed:1500rpm

---
