Chengheng Good Price 1000-1600mm ABC (IBC) Blown Extruder Production Line Three Layers Co-Extrusion Plastic Film Blowing Machine

Product Description

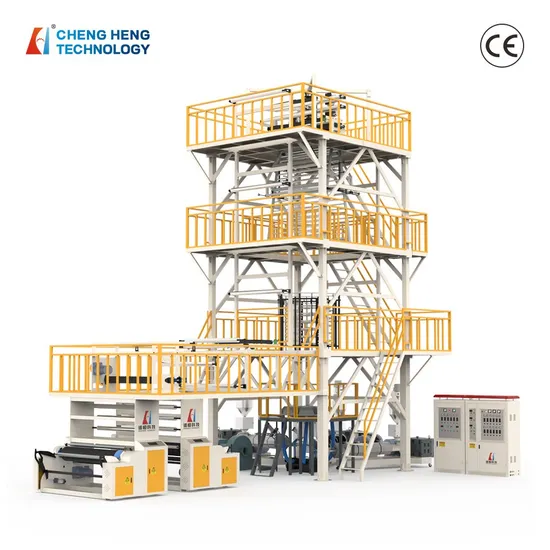

ABC Three Layers Film Blowing Machine Product Description
This three layers film blowing machine is a practical device that can produce a wide range of films for various packaging applications.It is equipped haul-off tower rotary that make the film thickness more even.EPC device help the winding more neat. All machine adopt dual-alloy forced-feeding screws that feature excellent hardness and wear resistance.It can still plasticize a large number of particles under an environment of high speed and high pressure.The service life can reach 3-5 times of ordinary screws. Product Parameters

Model	50-55-50/1400	55-65-55/1600/1800	65-75-65/2400
Width of the film	600-1200mm	800-1400/1000-1600mm	1500-2200mm
Thickness of the film	0.02-0.2mm
Output	250kg/h	300kg/h	380kg/h
	According to different width, thickness of film,die size and raw material characteristics to change
Raw material	HDPE/LDPE/LLDPE/MDPE/EVA
Diameter of screw	Φ50/55/50	Φ55/65/55	Φ65/75/65
L/D ratio of screw	32:1 (With force feeding)
Gear box	173# 180# 173#	180# 200# 180#	200# 225# 200#
Main motor	18.5kw/30kw/18.5kw	22kw/37kw/22kw	37kw/45kw/37kw
Die diameter	Φ300mm	Φ350mm /400mm	Φ500mm

Detailed Photos
Certifications
Company Profile
Hebei Chengheng Plastic Machinery Technology Co., Ltd. is located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. The transportation is very convenient. The company covers an area of 26,000 square meters. We have a modern intelligent operation workshop, specializing in the R&D and production and sales of biodegradable film blowing machines, ultra-high-speed intelligent film blowing machines, multi-layer co-extrusion intelligent film blowing machines and other plastic machinery.
Packaging & Shipping
FAQ
Q: How about after-sales service? How long is the machine warranty?
A: We guarantee lifetime after-sale service once you bought our machine, you can call us or send us any questions about the machine.
Q: How long is your delivery time and how many machines can you produce per month?
A: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q: How long can your machine work continuously?
A: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q: Does your factory need agents? What are the thresholds?
A: We need to recruit agents, welcome to inquire for more details.
Q: Where is your factory? How can I visit there?
A: We are located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. It only takes one hour by high-speed rail from Beijing and 2-3 hours by plane from Shanghai and Guangzhou.Warmly welcome domestic and foreign customers to visit us.

---
