3.2V 100Ah prismatic LiFePO4 Battery Rechargeable lithium iron phosphate battery Brand New Grade A Cell

Product Details

Product Description

Product Description

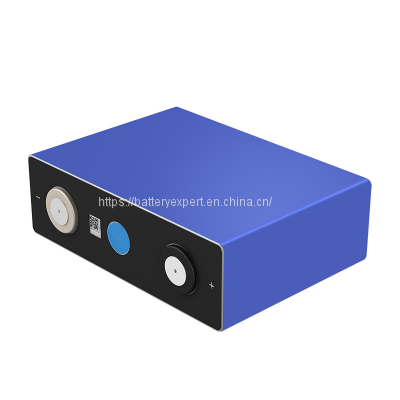

Rechargeable lithium iron phosphate battery Brand New Grade A 3.2V 100Ah prismatic LiFePO4 Battery Cell:

No.	Item		Specification	Remarks
1	Brand Name		Great Power or EVE or Yinglong
2	Model NO.		IFR100AH
3	Normilar Capacity		100Ah	0.2 C5A discharge
4	Normilar Voltage		3.2 V
5	Discharge Voltage (Min.)		2.0V
6	Charging Voltage (Max.)		3.65V
7	Charging Current (std.)		2 C5A
8	Discharging Current (Max. continue)		1 C5A
9	Discharging Current (Max. temporary)		3 C5A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH
13	Battery Type		LiFePO4 battery
14	Internal Impedance		≤2.0 mΩ
15	Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit
16	Size		160*50*120mm	Recommend or Customize
17	Weight		Approx. 1.2Kg	PVC/ABS package
18	Cycle Life		5000 times
19	Warranty		12 months

Typical Advantage of our lithium Iron phosphate battery PACK:
1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 2000 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.
5. Wide application: Soar wind energy storage power system, Powerwall, RV, Caravan, Yacht, Boat,Ebike,etc.
Note:
1.This item is 3.2V 100Ah item, the QR code is intact, Grade A+, Brand new. After our test, we ensure that each battery has enough capacity, please rest assured to buy!
2.The price come with Bus bars, studs, nuts，One Battery will come with one set bus bar studs and nuts（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 busbars, 8 sutds, 8 nuts）If need more please contact us online.Thank you!

---
