| 1. Gather mechanical-electrical-hydraulic functions, use extensively. |
| 2. With wide range of speed and feed, with manual,power and fine feeds. |
| 3. The feed of machines are very easily engaged and disengagedat any time. |
| 4. With safe and reliable feed safety machine, all parts easy operation and change. |
| 5. All controls centralized on the head stock easy operation and change. |
| 6. Clamping for assembli-es and speed change of spindle achieved by hydroulic power, . |
| 7. Main parts are made by machine center which import form KIA with high precision and efficiency,ensuring reliability and high quality. |
| 8. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts. |
| 9. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability. |
| 10. Main gears are machined by gear grinding, the machine ensuring high precision and low noise. |

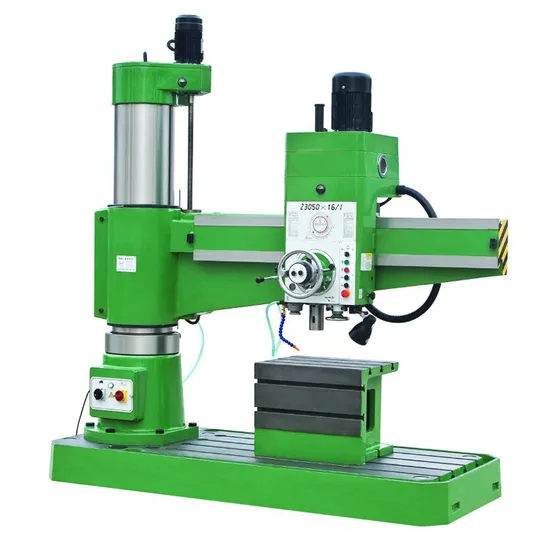

| Model | Z3040X16/1 | Z3050×16/1 | Z3063×20A |
| Max. Drilling capacity (mm) | 40 | 50 | 63 |
| Distance spindle axis to column generating line (mm) | 350-1600 | 350-1600 | 450-2050 |
| Diameter of column (mm) | 350 | 350 | 450 |
| Spindle taper | MT4 | MT5 | MT5 |
| Spindle travel (mm) | 315 | 315 | 400 |
| Spindle speeds range (r/min) | 25-2000 | 25-2000 | 20-1600 |
| Spindle speeds series | 16 | 16 | 16 |
| Range of Spindle feeds (r/min) | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 |
| Spindle feeds | 16 | 16 | 16 |
| Max. Distance spindle nose to working surface of base (mm) | 350-1250 | 320-1220 | 400-1600 |
| Dimension of worktable (mm) | 630x500x500 | 630x500x500 | 960x630x500 |
| Dimension of base (mm) | 2400x1000x200 | 2400x1000x200 | 2900x1250x250 |
| Overall Size (mm) | 2500x1060x2650 | 2500x1060x2650 | 3110x1250x3150 |
| Power of Main motor (KW) | 3 | 4 | 5.5 |
| G.W/N.W (kg) | 4300/3500 | 4300/3500 | 8000/7000 |
| Packing dimension (cm) | 270x112x258 | 270x112x258 | 347x147x235 |
| Standard accessories: | |
| Box shape worktable | |
| Taper sleeve | |
| Tool releasing wrench | |
| Drift | |
| Eyelet bolts | |
| Optional accessories: | |
| Quick instead chuck | |
| Tapping chuck | |
| Grease gun |
