| Measure range | Soil type | Grain size less than 1/4 of plate diameter |
| Effective depth | 0-500mm | |
| Work condition | -10-40C, Humidity<90%RH | |
| Portable host | Specs | Screen size:3inch Size:100*205*40mm Net weight:0.8kg |
| Storage cap. | 400 units | |
| Data transmission | Data cable | |
| Power supply | Lithium battery with high capacity, continuous working hour>18hour | |
| Display Language | English | |
| Printer | Connection | Wifi bluetooth |
| Sensor | Load cell range | 100kn |
| Displacement | 25mm/0.01mm | |
| Measurement & Data acquisition device | Plate | 300*25mm, 17.5kg |
| 600*20mm, 65kg | ||
| Loading unit | Hydraulic pump 100kn | |
| High pressure hose 2m length | ||
| Pluggable extension rods: 1*40mm,1*90mm,1*120mm,1*160mm, 2*60mm | ||

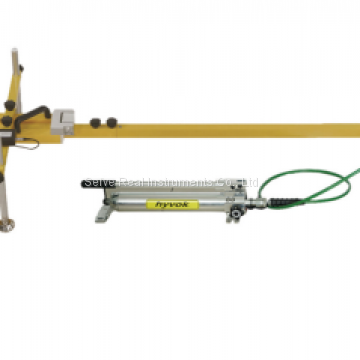

| Settlement test unit | 3-point support(flexible,rotational lever arm, base adjustable) | |
| Size: L2320*W570*H420mm | ||
| Net weight:14kg |
